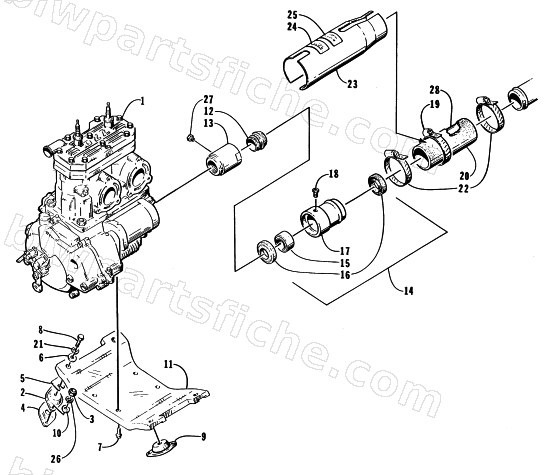

1997 Arctic Cat DAYTONA 700 — ENGINE AND RELATED ASSEMBLY
1997 DAYTONA 700
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-129 | ENGINE,PJ770 (HC98) | 1 | $6,887.95 | |
| 3 | 0624-149 | NUT, HEX 8MM-1.25 SS | 1 | $3.09 | |
| 4 | 0673-508 | SHIM,ENG MTG-.125 | 1 | $6.29 | |
| 4 | 0673-509 | SHIM,ENG MNT-.063 | 1 | $3.19 | |
| 5 | 0624-014 | SHIM-.5MM/26 GA. SS | 1 | $2.29 | |
| 5 | 0624-015 | SHIM-1.5MM/16 GA. SS | 1 | $2.69 | |
| 6 | 0624-406 | WASHER,FLAT FENDER-M10X1.38X.183 | 1 | $3.69 | |
| 7 | 3008-203 | BOLT, ENGINE PLATE-M10X30 | 1 | $4.95 | |
| 8 | 0624-421 | SCREW,CAP-HH M10 1.25X30 DIN933 | 1 | $3.69 | |
| 9 | 3008-456 | MOUNT,ENGINE-65 DUR.SUZUKI | 1 | $155.59 | |
| 10 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 11 | 0608-176 | PLATE,MTG-ENGINE-STAMPED (WELDMENT) | 1 | $183.79 | |
| 14 | 0775-063 | SEAL HOUSING-MFG.ASSY | 1 | $159.95 | |
| 15 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 17 | 0675-162 | HOUSING,BEARING | 1 | $83.79 | |
| 18 | 0623-688 | FITTING,GREASE-FLUSH (3036) | 1 | $5.29 | |
| 19 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 21 | 0624-012 | WASHER,LOCK-10MM SL (SS) | 1 | $0.92 | |
| 22 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 24 | 1611-608 | DECAL,NOTICE-SHAFT GUARD | 1 | $9.79 | |
| 25 | 0614-244 | DECAL,COUPLER-SERVICING | 1 | $20.79 | |
| 26 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 28 | 0675-045 | TUBE,REINFORCEMENT (1.75X1.75X.065 ALUM. | 1 | $11.29 |
