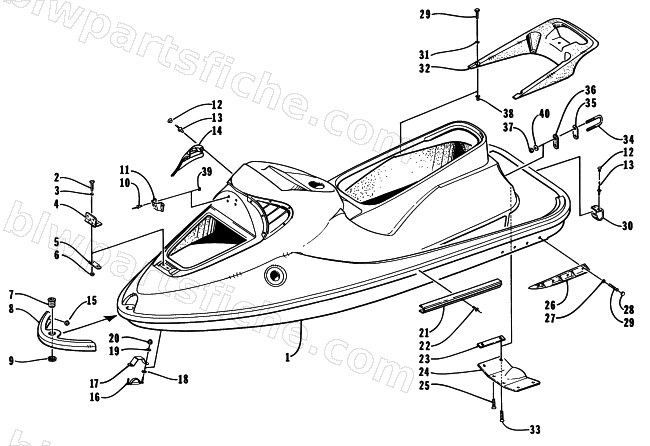

1997 Arctic Cat DAYTONA 700 — HULL AND RELATED PARTS ASSEMBLY
1997 DAYTONA 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0773-843 | HULL/DECK,SP-97DTA(SPECIAL ORDER) | 1 | $3,870.95 | |
| 2 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 3 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 4 | 1673-032 | HINGE | 1 | $180.95 | |
| 5 | 1673-031 | PLATE,BACKING-HINGE | 1 | $4.89 | |
| 6 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 8 | 1673-444 | NOSECONE,RED | 1 | $45.95 | |
| 9 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 10 | 0624-072 | RIVET,SS/SS68D | 1 | $1.29 | |
| 11 | 1673-034 | STRIKE, HATCH LATCH | 1 | $60.29 | |
| 12 | 1673-284 | PLUG,MUSHROOM-RED | 1 | $0.71 | |
| 13 | 0623-619 | RIVET-A\A 48 D | 1 | $0.33 | |
| 14 | 1673-267 | GRILLE,PORT-RED | 1 | $20.63 | |
| 15 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 16 | 0773-516 | BOWEYE-WELDMENT | 1 | $66.95 | |
| 17 | 0673-897 | STRAP,REINFORCEMENT | 1 | $15.11 | |
| 18 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 19 | 0624-247 | WASHER,FLAT (SS) .250X.562 | 1 | $0.75 | |
| 20 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 21 | 1673-271 | RUB RAIL,PORT-RED(USE 1773-046 BLACK) | 1 | $116.95 | |
| 22 | 0624-030 | RIVET,SS/SS610LF | 1 | $2.19 | |
| 23 | 1673-200 | PLATE,NUT | 1 | $12.95 | |
| 24 | 0775-073 | PLATE, RIDE-WELD'T | 1 | $308.95 | |
| 25 | 0624-184 | SCREW,MACH-TSFH 6MM-1.0 X 25MM (SS) | 1 | $2.19 | |
| 26 | 1673-308 | SPONSON,STARBOARD-RED(USE 1773-048 BLK) | 1 | $56.95 | |
| 26 | 1673-309 | SPONSON,PORT-RED (USE 1773-048 BLACK) | 1 | $79.95 | |
| 27 | 0124-065 | WASHER,SNAP CAP | 1 | $0.40 | |
| 28 | 1673-269 | COVER,SNAP CAP-RED | 1 | $0.63 | |
| 29 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 30 | 1673-285 | COVER,RUB RAIL-RED | 1 | $7.29 | |
| 31 | 0624-115 | WASHER,LOCK-SL .250 SS | 1 | $0.21 | |
| 32 | 1673-305 | GRAB HANDLE-RED | 1 | $101.59 | |
| 33 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 34 | 0624-429 | BOLT,U ASSY.3/8-16 | 1 | $18.79 | |
| 35 | 0673-656 | PLATE,BACKUP-EYEHOOK | 1 | $5.29 | |
| 37 | 0624-258 | NUT,LOCK 3/8-16 SS | 1 | $1.39 | |
| 38 | 0623-557 | INSERT,BRASS-AVK-ALB2-420-260(.25 X 20) | 1 | $3.95 | |
| 39 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 40 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 |
