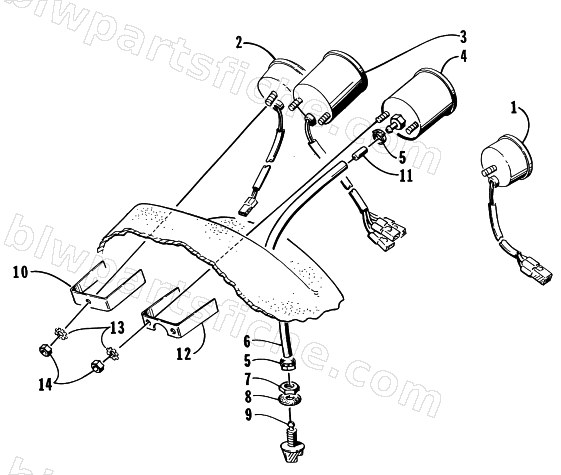

1997 Arctic Cat DAYTONA 700 — INSTRUMENT ASSEMBLY
1997 DAYTONA 700
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0620-214 | GAUGE,FUEL LEVEL-W/OIL&OVERHEAT LED | 1 | $241.59 | |
| 3 | 0620-191 | TACHOMETER,3INCH-4 POLE | 1 | $422.95 | |
| 4 | 0620-189 | SPEEDOMETER,3 INCH | 1 | $247.95 | |
| 5 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 6 | 0673-809 | TUBING,VINYL-20FT | 1 | $39.95 | |
| 10 | 0620-173 | BACKCLAMP,FUEL GAUGE | 1 | $4.89 | |
| 12 | 0620-199 | BRACKET,GAUGE-3" | 1 | $5.92 | |
| 12 | 0620-201 | BACKCLAMP,TACHOMETER | 1 | $17.87 | |
| 13 | 0623-702 | WASHER,STAR-#8 BRASS | 1 | $0.92 | |
| 14 | 0623-701 | NUT,HEX-8-32 | 1 | $0.18 |
