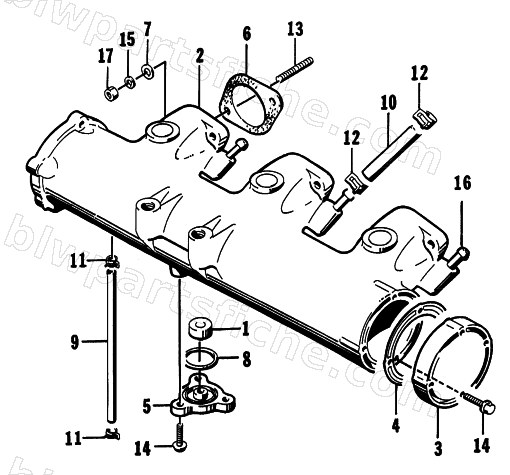

1997 Arctic Cat MONTE CARLO 1000 — EXHAUST MANIFOLD ASSEMBLY
1997 MONTE CARLO 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-047 | ZINC, CYLINDER | 1 | $25.79 | |
| 2 | 3008-444 | MANIFOLD ASSY, EXHAUST | 1 | $1,297.95 | |
| 3 | 3008-268 | COVER,EX.MANIFOLD | 1 | $93.95 | |
| 4 | 3008-519 | GASKET, EXHAUST MANIFOLD COVER | 1 | $29.95 | |
| 5 | 3008-520 | COVER, PROTECTION ZINC | 1 | $61.95 | |
| 6 | 3008-407 | GASKET, EXHAUST MANIFOLD | 1 | $19.95 | |
| 7 | 3008-312 | WASHER.8MM | 1 | $3.19 | |
| 8 | 3008-250 | O RING | 1 | $2.89 | |
| 10 | 3008-257 | CASE ASSY,MAGNETO | 1 | $597.95 | |
| 11 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 12 | 3008-366 | CLAMP,HOSE,M13 | 1 | $3.39 | |
| 13 | 3008-391 | STUD,8X25 | 1 | $8.95 | |
| 14 | 3008-213 | SCREW,CAP-HWH M6X25 | 1 | $4.19 | |
| 15 | 3008-392 | WASHER,8MM | 1 | $2.69 | |
| 16 | 3008-364 | FITTING,BEADED-10MM | 1 | $6.95 | |
| 17 | 3007-416 | NUT | 1 | $2.75 |
