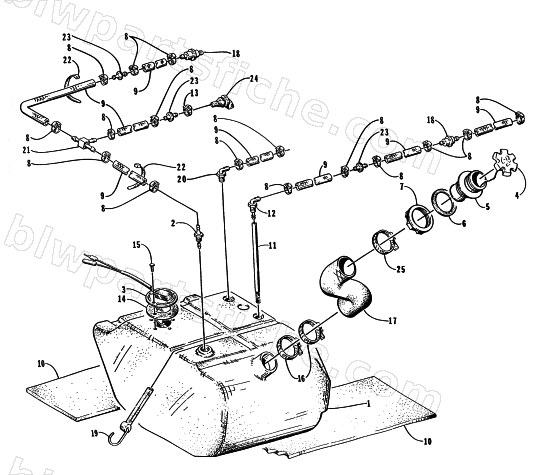

GAS TANK ASSEMBLY
1997 MONTE CARLO 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-244 | TANK,FUEL-SP 97MCC | 1 | $216.95 | |
| 2 | 0670-564 | OUTLET,GAS TANK-BRASS | 1 | $17.87 | |
| 3 | 0620-206 | SENSOR,FUEL LEVEL | 1 | $76.29 | |
| 6 | 0670-688 | GASKET,FILL NECK | 1 | $2.69 | |
| 8 | 0623-365 | CLAMP,HOSE (SNP10) | 1 | $1.95 | |
| 9 | 0610-107 | HOSE, GAS LINE, 25' | 1 | $223.95 | |
| 10 | 1673-344 | PAD,FUEL TANK | 1 | $4.89 | |
| 11 | 0670-754 | TUBE,DROP-RESERVE | 1 | $6.79 | |
| 13 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 14 | 0670-474 | GASKET,FUEL SENSOR-PWC | 1 | $19.95 | |
| 15 | 0624-312 | SCREW,MACH-HWH 10-32X.475 (SS) | 1 | $4.95 | |
| 16 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 17 | 0610-313 | HOSE,FILLER-FUEL | 1 | $62.59 | |
| 18 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 19 | 0773-383 | STRAP ASSY-22 1/4 | 1 | $12.59 | |
| 21 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 |
