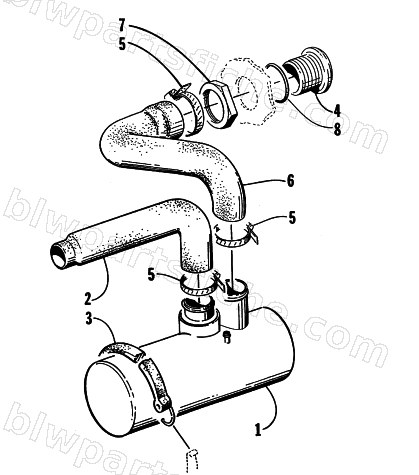

1997 Arctic Cat MONTE CARLO 1000 — MUFFLER ASSEMBLY
1997 MONTE CARLO 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-243 | MUFFLER-WELDT | 1 | $560.95 | |
| 2 | 0610-321 | HOSE,EXHAUST-IN | 1 | $80.29 | |
| 3 | 0773-794 | STRAP-ASSY-13 5/8 | 1 | $11.79 | |
| 6 | 0610-269 | HOSE,EXHAUST-OUT | 1 | $180.59 | |
| 7 | 0612-576 | NUT,EXHAUST OUTLET | 1 | $17.95 |
