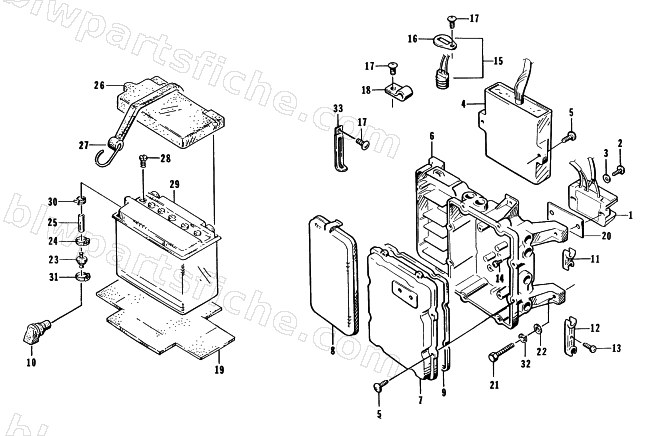

1997 Arctic Cat MONTE CARLO 640 — ELECTRICAL MODULE AND BATTERY
1997 MONTE CARLO 640
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-279 | REGULATOR/RECTIFIER | 1 | $589.95 | |
| 2 | 3008-479 | SCREW, M6X25 | 1 | $4.89 | |
| 3 | 3008-337 | WASHER | 1 | $4.49 | |
| 4 | 3008-636 | CDI | 1 | $728.29 | |
| 5 | 3008-478 | SCREW, M6X20 | 1 | $5.29 | |
| 6 | 3008-465 | CASE, ELECTRIC PARTS | 1 | $144.95 | |
| 7 | 3008-283 | COVER,CASE | 1 | $66.95 | |
| 9 | 3008-285 | PACKING | 1 | $24.95 | |
| 11 | 3008-124 | HOLDER, GROMMET | 1 | $6.59 | |
| 12 | 3008-125 | HOLDER, GROMMET | 1 | $7.79 | |
| 13 | 3008-477 | SCREW, M5X16 | 1 | $3.19 | |
| 15 | 3008-660 | SENSOR ASSY,HEAT | 1 | $232.95 | |
| 16 | 3008-134 | SUPPORTER, ENGINE TEMP SNSR | 1 | $9.59 | |
| 17 | 3008-219 | SCREW, 6X10 | 1 | $4.59 | |
| 18 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 | |
| 20 | 3008-336 | BASE,REGULATOR | 1 | $19.25 | |
| 22 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 23 | 0670-295 | VALVE,CHECK W/FILTER 3/16-3/16 | 1 | $22.01 | |
| 24 | 0623-502 | CLAMP,HOSE (SNP01.5) | 1 | $1.59 | |
| 25 | 0645-264 | HOSE, BATTERY VENT-700MM | 1 | $3.95 | |
| 26 | 1673-212 | COVER,BATTERY | 1 | $5.29 | |
| 27 | 0773-779 | STRAP-ASSY-SHORT | 1 | $9.59 | |
| 28 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 29 | 0745-040 | BATTERY PKG(0645-063) | 1 | $113.95 | |
| 30 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 31 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 32 | 0624-115 | WASHER,LOCK-SL .250 SS | 1 | $0.21 | |
| 33 | 3008-357 | CLAMP,M6 | 1 | $3.09 |
