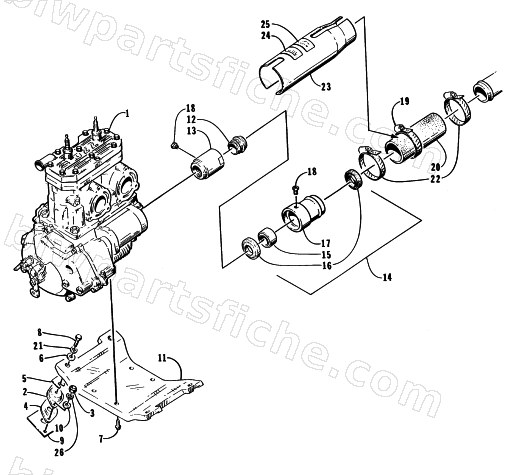

1997 Arctic Cat MONTE CARLO 770 — ENGINE AND RELATED ASSEMBLY
1997 MONTE CARLO 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-129 | ENGINE,PJ770 (HC98) | 1 | $6,887.95 | |
| 3 | 0624-149 | NUT, HEX 8MM-1.25 SS | 1 | $3.09 | |
| 4 | 0673-508 | SHIM,ENG MTG-.125 | 1 | $6.29 | |
| 4 | 0673-509 | SHIM,ENG MNT-.063 | 1 | $3.19 | |
| 5 | 0624-014 | SHIM-.5MM/26 GA. SS | 1 | $2.29 | |
| 5 | 0624-015 | SHIM-1.5MM/16 GA. SS | 1 | $2.69 | |
| 6 | 3008-016 | WASHER, 10.5X30X3.2 | 1 | $3.85 | |
| 7 | 3008-203 | BOLT, ENGINE PLATE-M10X30 | 1 | $4.95 | |
| 8 | 0624-275 | SCREW,CAP-HH-M10 X 40 (SS) | 1 | $3.09 | |
| 9 | 1673-386 | SHIM,ENG MNT-.104 (SUPPORT) | 1 | $13.59 | |
| 10 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 11 | 0608-167 | PLATE,MTG-ENGINE | 1 | $432.95 | |
| 19 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 21 | 3008-021 | WASHER, LOCK,10MM | 1 | $2.79 | |
| 22 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 24 | 1611-608 | DECAL,NOTICE-SHAFT GUARD | 1 | $9.79 | |
| 25 | 0614-244 | DECAL,COUPLER-SERVICING | 1 | $20.79 | |
| 26 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 |
