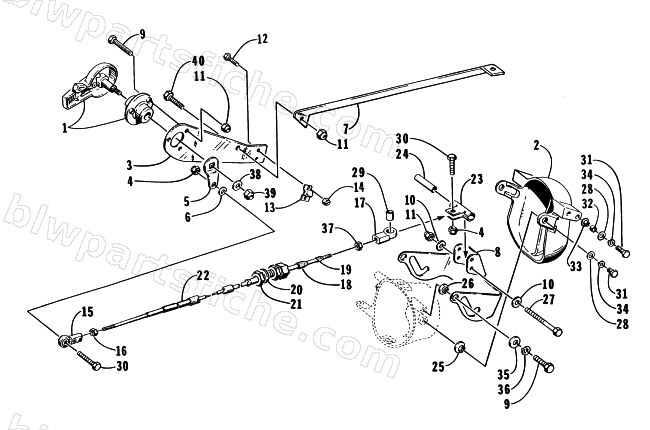

1997 Arctic Cat MONTE CARLO 770 — REVERSE DEFLECTOR AND LEVER ASSEMBLY
1997 MONTE CARLO 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-970 | LEVER,REVERSE-WHITE | 1 | $131.29 | |
| 2 | 1673-262 | DEFLECTOR,REVERSE-MACH | 1 | $199.59 | |
| 3 | 1673-142 | MOUNT,LEVER-REVERSE | 1 | $38.29 | |
| 4 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 5 | 1673-264 | ARM,REVERSE-LEVER- 67.5 | 1 | $19.59 | |
| 6 | 0624-115 | WASHER,LOCK-SL .250 SS | 1 | $0.21 | |
| 7 | 0673-701 | BRACKET,REVERSE CABLE SUPPORT | 1 | $11.29 | |
| 8 | 1673-263 | PLATE,CAM-LOCKING | 1 | $113.95 | |
| 10 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 11 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 12 | 0624-155 | SCREW,CAP-HH M5-.8X16 SS | 1 | $0.87 | |
| 13 | 0673-556 | CLAMP,REVERSE CABLE | 1 | $3.89 | |
| 14 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 15 | 0673-931 | ROD END,STEERING (10-32) | 1 | $50.95 | |
| 16 | 0624-107 | NUT,HEX-10-32 (SS) | 1 | $0.39 | |
| 17 | 1673-261 | ROD END | 1 | $42.59 | |
| 18 | 0612-364 | COVER,THREAD CAP-STEERING CABLE | 1 | $2.69 | |
| 20 | 1673-193 | GASKET,CABLE-FOAM | 1 | $3.49 | |
| 21 | 0623-669 | NUT,STEERING CABLE-NYLON | 1 | $2.95 | |
| 23 | 1673-152 | PIVOT,UNIVERSAL | 1 | $16.59 | |
| 24 | 1673-156 | SPACER,.245-.375X1.5 | 1 | $10.97 | |
| 25 | 0624-405 | BUSHING | 1 | $12.29 | |
| 26 | 0624-404 | BUSHING | 1 | $12.95 | |
| 27 | 0624-213 | SCREW,CAP-HH M6-1.0 X 60 (SS) | 1 | $2.79 | |
| 28 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 29 | 0624-395 | SPACER | 1 | $3.29 | |
| 30 | 0624-289 | SCREW,CAP-HH 1/4-20 X 1 SS | 1 | $0.87 | |
| 32 | 1673-318 | ROLLER,REVERSE | 1 | $11.29 | |
| 34 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 35 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 37 | 0624-279 | NUT,HEX-1/4-28 (SS) | 1 | $0.67 | |
| 38 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 39 | 0624-427 | NUT,HEX-M10X1.25 W/LOCKPATCH | 1 | $4.29 |
