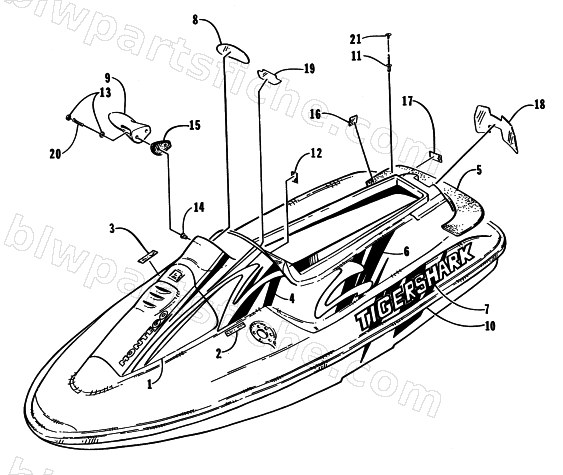

1997 Arctic Cat MONTEGO DELUXE — DECAL AND FOOTPAD ASSEMBLY
1997 MONTEGO DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0614-280 | DECAL,HATCH-STARBOARD | 1 | $22.29 | |
| 1 | 0614-281 | DECAL,HATCH-PORT | 1 | $22.29 | |
| 2 | 0614-299 | DECAL,WARNING-FUEL | 1 | $7.95 | |
| 3 | 0614-300 | DECAL, OIL - USAGE | 1 | $8.59 | |
| 4 | 0614-282 | DECAL,FWD.SIDE-STARBOARD | 1 | $36.29 | |
| 4 | 0614-283 | DECAL,FWD.SIDE-PORT | 1 | $36.29 | |
| 5 | 1673-208 | PAD,FOOT-REAR-PURPLE | 1 | $200.95 | |
| 6 | 0614-284 | DECAL,SIDE AFT-STARBOARD | 1 | $37.59 | |
| 6 | 0614-285 | DECAL,SIDE AFT-PORT | 1 | $36.29 | |
| 7 | 0614-286 | DECAL,DECK-STARBOARD"TIGERSHARK" | 1 | $41.59 | |
| 7 | 0614-287 | DECAL,DECK-PORT"TIGERSHARK" | 1 | $41.59 | |
| 8 | 0614-277 | DECAL,INST.PANEL | 1 | $14.59 | |
| 9 | 1673-238 | MIRROR,RH-PURPLE | 1 | $76.29 | |
| 10 | 0614-288 | DECAL,HULL-STARBOARD | 1 | $24.29 | |
| 10 | 0614-289 | DECAL,HULL-PORT | 1 | $24.29 | |
| 11 | 0623-665 | RIVET,AA48ABS SOFT SET-PURPLE | 1 | $0.33 | |
| 12 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 13 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 14 | 0623-557 | INSERT,BRASS-AVK-ALB2-420-260(.25 X 20) | 1 | $3.95 | |
| 15 | 1673-120 | GASKET,MOUNTING-MIRROR RH | 1 | $10.97 | |
| 15 | 1673-127 | GASKET,MOUNTING-MIRROR LH | 1 | $10.97 | |
| 16 | 0614-066 | DECAL,USCG EXEMPTION | 1 | $4.59 | |
| 17 | 0614-154 | DECAL,CAUTION-UPRIGHTING | 1 | $12.29 | |
| 18 | 0614-155 | DECAL,REGULATION | 1 | $24.59 | |
| 19 | 0614-267 | DECAL,CONSOLE | 1 | $12.95 | |
| 20 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 21 | 1673-181 | PLUG,MUSHROOM-DOMED-PURPLE | 1 | $0.92 |
