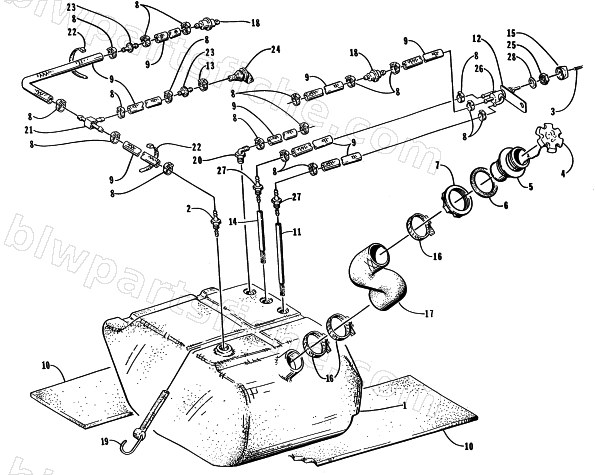

GAS TANK ASSEMBLY
1997 MONTEGO DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-175 | GAS TANK ASSY-SER-RESERVE | 1 | $202.59 | |
| 2 | 0670-564 | OUTLET,GAS TANK-BRASS | 1 | $17.87 | |
| 3 | 0624-428 | SCREW,CAP-HS PLAIN HEAD M4-0.7X10 SS | 1 | $0.87 | |
| 4 | 0670-668 | CAP,FUEL-PURPLE | 1 | $29.29 | |
| 5 | 0637-171 | KIT,FILLER NECK REPLACEMENT-DT | 1 | $23.39 | |
| 6 | 0670-546 | GASKET,FILL NECK | 1 | $5.78 | |
| 8 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 9 | 0610-107 | HOSE, GAS LINE, 25' | 1 | $223.95 | |
| 10 | 1673-344 | PAD,FUEL TANK | 1 | $4.89 | |
| 12 | 1673-373 | PLATE,BACKING-RESERVE VALVE | 1 | $5.59 | |
| 13 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 14 | 1673-055 | TUBE,DROP-MAIN | 1 | $18.29 | |
| 15 | 1673-274 | KNOB,RESERVE FUEL | 1 | $5.29 | |
| 16 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 17 | 0710-093 | HOSE,FILL-2 ID X 4 (GAS/OIL) | 1 | $10.59 | |
| 18 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 21 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 0623-687 | NUT,RESERVE FUEL VALVE-NYLON | 1 | $2.39 | |
| 26 | 0670-710 | VALVE,RESERVE FUEL | 1 | $46.59 | |
| 27 | 0670-655 | FITTING,OUTLET-BRASS | 1 | $12.35 | |
| 28 | 0623-693 | WASHER,NYLON-.859X1.132X.031(5610-377-31 | 1 | $0.19 |
