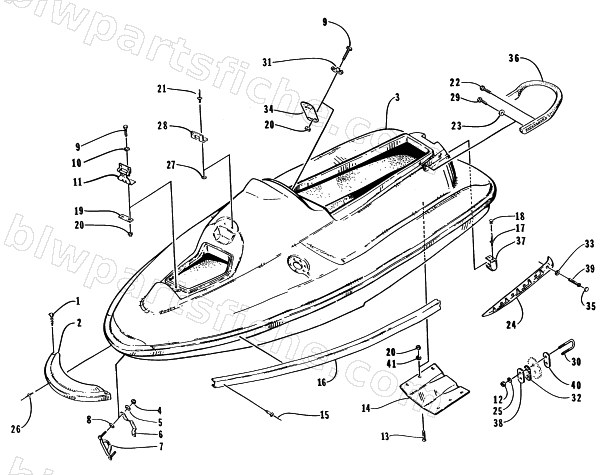

1997 Arctic Cat MONTEGO DELUXE — HULL AND RELATED PARTS ASSEMBLY
1997 MONTEGO DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-694 | CLIP,RETAINING-PURPLE (MOLDED) | 1 | $1.79 | |
| 3 | 0773-824 | HULL/DECK-SP-97MTB(SPECIAL ORDER) | 1 | $3,524.59 | |
| 4 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 5 | 0624-247 | WASHER,FLAT (SS) .250X.562 | 1 | $0.75 | |
| 6 | 0673-897 | STRAP,REINFORCEMENT | 1 | $15.11 | |
| 7 | 0773-516 | BOWEYE-WELDMENT | 1 | $66.95 | |
| 8 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 9 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 10 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 11 | 0673-871 | HINGE | 1 | $73.95 | |
| 12 | 0624-258 | NUT,LOCK 3/8-16 SS | 1 | $1.39 | |
| 13 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 14 | 0673-814 | PLATE,RIDE | 1 | $200.95 | |
| 15 | 0624-068 | RIVET,SS/SS610D | 1 | $1.39 | |
| 16 | 1673-183 | TRIM,STRBRD-PURPLE(USE 1773-046 BLACK) | 1 | $90.29 | |
| 16 | 1673-182 | TRIM,PORT-PURPLE(USE 1773-046 BLACK) | 1 | $73.59 | |
| 17 | 0623-665 | RIVET,AA48ABS SOFT SET-PURPLE | 1 | $0.33 | |
| 18 | 1673-181 | PLUG,MUSHROOM-DOMED-PURPLE | 1 | $0.92 | |
| 19 | 0673-870 | PLATE,HINGE | 1 | $4.69 | |
| 20 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 21 | 0624-072 | RIVET,SS/SS68D | 1 | $1.29 | |
| 23 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 25 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 | |
| 26 | 0623-655 | RIVET,AD610ABSLF-PURPLE | 1 | $0.92 | |
| 27 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 28 | 0673-866 | STRIKE | 1 | $10.97 | |
| 29 | 0624-257 | SCREW,SELF TAP-HWH 1/4-14X1 1/4 18-8SS T | 1 | $1.39 | |
| 31 | 1673-326 | STOP,STEERING | 1 | $7.59 | |
| 33 | 0124-065 | WASHER,SNAP CAP | 1 | $0.40 | |
| 34 | 1673-313 | PLATE,BACKING-STEERING STOP | 1 | $19.29 | |
| 35 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 36 | 1673-185 | HANDLE,GRAB-PURPLE | 1 | $101.95 | |
| 37 | 1673-180 | COVER,RUB RAIL-PURPLE | 1 | $13.95 | |
| 38 | 0673-656 | PLATE,BACKUP-EYEHOOK | 1 | $5.29 | |
| 39 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 40 | 0673-657 | PLATE,BACKING-EYEHOOK | 1 | $6.06 | |
| 41 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 |
