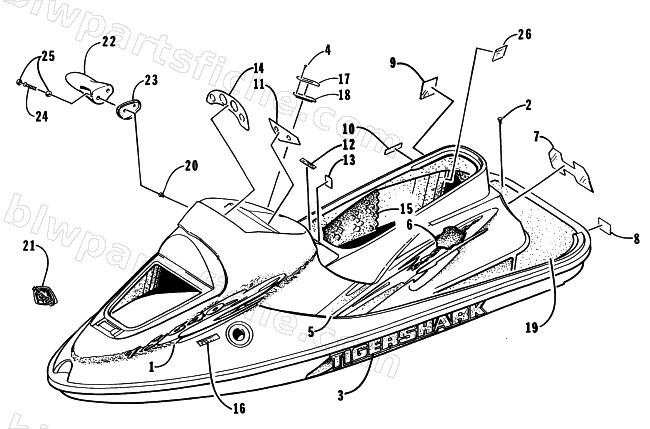

1998 Arctic Cat TS 640 — DECAL AND FOOTPAD ASSEMBLY
1998 TS 640
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0614-374 | DECAL,DECK-STRBRD | 1 | $157.95 | |
| 1 | 0614-375 | DECAL,DECK-PORT | 1 | $157.95 | |
| 2 | 0623-725 | CLIP,RETAINING-BLACK | 1 | $0.75 | |
| 3 | 0614-372 | DECAL,HULL-STRBRD "TIGERSHARK" | 1 | $94.29 | |
| 3 | 0614-373 | DECAL,HULL-PORT "TIGERSHARK" | 1 | $102.59 | |
| 4 | 0623-760 | CLIP,RETAINING-NATURAL | 1 | $0.36 | |
| 5 | 0614-376 | DECAL,SIDE-PORT | 1 | $194.59 | |
| 5 | 0614-377 | DECAL,SIDE-STRBRD | 1 | $194.59 | |
| 6 | 0617-259 | FOAM,SOUND-PORT | 1 | $36.59 | |
| 7 | 0614-350 | DECAL,REGULATION-WHITE | 1 | $49.29 | |
| 8 | 0614-154 | DECAL,CAUTION-UPRIGHTING | 1 | $12.29 | |
| 9 | 0614-066 | DECAL,USCG EXEMPTION | 1 | $4.59 | |
| 10 | 0614-059 | DECAL, COMMON SENSE | 1 | $11.29 | |
| 11 | 0614-379 | DECAL,CONSOLE | 1 | $15.95 | |
| 12 | 0614-300 | DECAL, OIL - USAGE | 1 | $8.59 | |
| 13 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 14 | 0614-380 | DECAL,INSTRUMENT PANEL | 1 | $34.29 | |
| 16 | 0614-299 | DECAL,WARNING-FUEL | 1 | $7.95 | |
| 17 | 0614-360 | DECAL,OIL LEVEL | 1 | $37.95 | |
| 18 | 0670-363 | LENS,GAUGE-OIL LEVEL | 1 | $43.95 | |
| 20 | 0623-557 | INSERT,BRASS-AVK-ALB2-420-260(.25 X 20) | 1 | $3.95 | |
| 21 | 0614-378 | DECAL,CREST | 1 | $15.29 |
