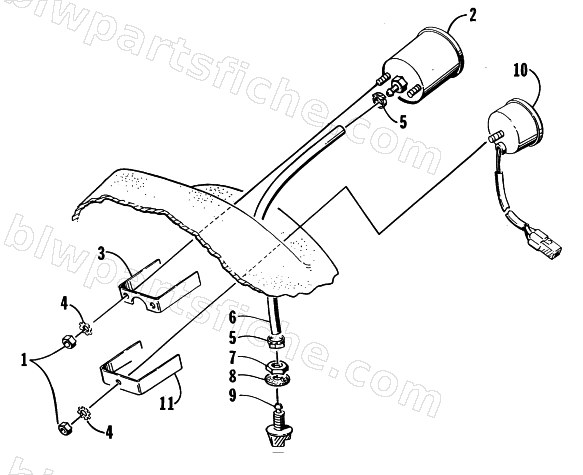

1998 Arctic Cat TS 770 — INSTRUMENT ASSEMBLY
1998 TS 770
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-701 | NUT,HEX-8-32 | 1 | $0.18 | |
| 2 | 0620-189 | SPEEDOMETER,3 INCH | 1 | $247.95 | |
| 3 | 0620-199 | BRACKET,GAUGE-3" | 1 | $5.92 | |
| 4 | 0623-702 | WASHER,STAR-#8 BRASS | 1 | $0.92 | |
| 6 | 0673-809 | TUBING,VINYL-20FT | 1 | $39.95 | |
| 10 | 0620-172 | FUEL,GAUGE-W/LOW OIL | 1 | $207.59 | |
| 11 | 0620-173 | BACKCLAMP,FUEL GAUGE | 1 | $4.89 |
