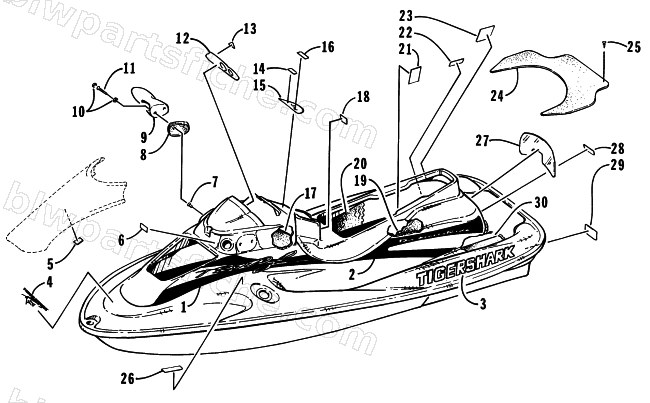

1998 Arctic Cat TS-L 1000 — DECAL AND FOOTPAD ASSEMBLY
1998 TS-L 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0614-422 | DECAL,HATCH-STRBRD | 1 | $101.59 | |
| 1 | 0614-423 | DECAL,HATCH-PORT | 1 | $101.59 | |
| 2 | 0614-424 | DECAL,SIDE-STRBRD | 1 | $101.59 | |
| 2 | 0614-425 | DECAL,SIDE-PORT | 1 | $101.59 | |
| 3 | 0614-426 | DECAL,STRBRD-"TIGERSHARK" | 1 | $37.95 | |
| 3 | 0614-427 | DECAL,PORT-"TIGERSHARK" | 1 | $43.29 | |
| 4 | 0614-421 | DECAL,CREST-TSLC | 1 | $55.59 | |
| 5 | 0614-431 | DECAL,LOADING-STORAGE TRAY | 1 | $4.99 | |
| 6 | 0614-300 | DECAL, OIL - USAGE | 1 | $8.59 | |
| 7 | 0623-737 | INSERT,BRASS-AKB2-420-390 (.25 X 20) | 1 | $5.59 | |
| 8 | 1673-120 | GASKET,MOUNTING-MIRROR RH | 1 | $10.97 | |
| 8 | 1673-127 | GASKET,MOUNTING-MIRROR LH | 1 | $10.97 | |
| 9 | 1673-536 | MIRROR,STRBRD-CA RED | 1 | $180.95 | |
| 9 | 1673-537 | MIRROR,PORT-CA RED | 1 | $115.29 | |
| 10 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 11 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 12 | 0614-415 | DECAL,INSTRUMENT PANEL- (TSL) | 1 | $22.29 | |
| 13 | 3611-003 | DECAL,DOME-"MADE IN U.S.A." | 1 | $7.95 | |
| 14 | 0614-356 | DECAL,CAUTION-LEAN CONDITION | 1 | $16.95 | |
| 15 | 0614-436 | DECAL,CONSOLE (NO RESERVE) | 1 | $41.59 | |
| 16 | 0614-359 | DECAL,LIFT SEAT BEFORE STARTING | 1 | $17.29 | |
| 17 | 0617-284 | FOAM,DECK-STRBD | 1 | $53.59 | |
| 17 | 0617-285 | FOAM,DECK-PORT | 1 | $50.59 | |
| 18 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 21 | 0614-404 | DECAL,WINTER STORAGE-1000 | 1 | $11.79 | |
| 22 | 0614-059 | DECAL, COMMON SENSE | 1 | $11.29 | |
| 23 | 0614-067 | DECAL,USCG EXEMPTION | 1 | $9.95 | |
| 25 | 0623-725 | CLIP,RETAINING-BLACK | 1 | $0.75 | |
| 26 | 0614-299 | DECAL,WARNING-FUEL | 1 | $7.95 | |
| 27 | 0614-350 | DECAL,REGULATION-WHITE | 1 | $49.29 | |
| 29 | 0614-154 | DECAL,CAUTION-UPRIGHTING | 1 | $12.29 | |
| 30 | 0617-262 | FOAM,FOOTWELL | 1 | $25.79 |
