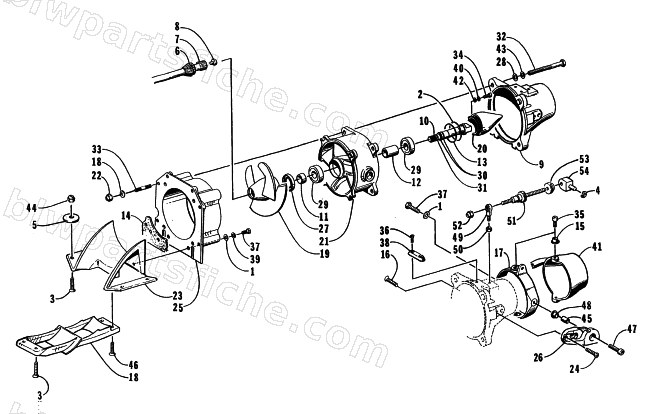

IMPELLER DRIVE ASSEMBLY
1998 TS-L 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 2 | 0675-078 | O-RING (-032) | 1 | $0.71 | |
| 3 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 5 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 6 | 0675-187 | GROMMET,IMPELLER | 1 | $5.29 | |
| 7 | 0675-205 | DRIVESHAFT,THREADED | 1 | $346.29 | |
| 8 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 9 | 0675-215 | VENTURI,MACH | 1 | $247.95 | |
| 11 | 0675-085 | SPACER,IMPELLER | 1 | $27.59 | |
| 12 | 0675-084 | SPACER,BEARING | 1 | $56.95 | |
| 15 | 1673-593 | BUSHING | 1 | $17.59 | |
| 16 | 0624-272 | SCREW,MACH-TSFH M6 X 16 (SS) | 1 | $2.79 | |
| 18 | 0675-239 | GRATE,INLET-TOP LOADER | 1 | $71.29 | |
| 19 | 0675-142 | IMPELLER,SS-12/23 DIS 60/146 | 1 | $586.79 | |
| 20 | 0675-146 | TAILCONE,STATOR-MACH (180) | 1 | $126.95 | |
| 21 | 0675-224 | STATOR,SS-MACH | 1 | $547.29 | |
| 22 | 0624-090 | NUT,LOCK-HH M8-1.25 (SS) | 1 | $1.89 | |
| 23 | 0675-199 | RAMP,INLET | 1 | $175.95 | |
| 25 | 0775-069 | WEAR RING-MFG ASSY | 1 | $460.29 | |
| 26 | 0675-251 | STRIKE,REVERSE-MACH | 1 | $82.95 | |
| 27 | 0637-194 | KIT, SEAL,-STATOR | 1 | $94.95 | |
| 28 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 30 | 0673-608 | O-RING,11/16 X 1/16 (-017) | 1 | $0.44 | |
| 31 | 0673-607 | O-RING,9/16 X 1/16 (-015) | 1 | $7.29 | |
| 32 | 0624-386 | SCREW,CAP-HH M10-1.5X130 SS | 1 | $18.79 | |
| 33 | 0624-319 | STUD,M8-1.25 X 54 | 1 | $33.29 | |
| 35 | 0624-174 | SCREW,CAP-HSH 8MM 1.25P X 10MM-SS | 1 | $2.59 | |
| 36 | 0624-184 | SCREW,MACH-TSFH 6MM-1.0 X 25MM (SS) | 1 | $2.19 | |
| 38 | 0624-084 | ZINC ANODES | 1 | $28.59 | |
| 39 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 42 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 43 | 0624-012 | WASHER,LOCK-10MM SL (SS) | 1 | $0.92 | |
| 44 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 48 | 1673-630 | BUSHING | 1 | $2.29 | |
| 49 | 0675-201 | ROD END,5/16-24 | 1 | $75.95 | |
| 50 | 0624-460 | NUT,JAM-5/16-24 NF | 1 | $1.39 | |
| 51 | 0675-200 | SHAFT,TRIM-MANUAL ADJUSTMENT | 1 | $98.59 | |
| 53 | 0675-202 | LOCKWHEEL,TRIM-MANUAL | 1 | $9.29 | |
| 54 | 0675-203 | BLOCK,ADJUSTMENT-MANUAL TRIM | 1 | $73.95 |
