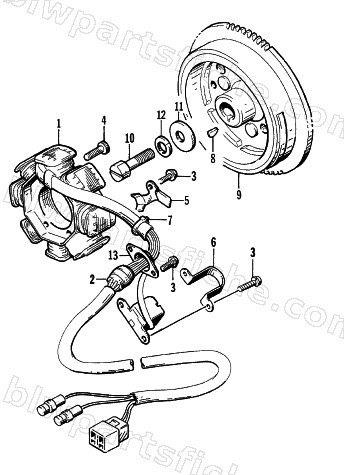

MAGNETO
1998 TS-L 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-315 | STATOR | 1 | $719.29 | |
| 3 | 3007-553 | SCREW | 1 | $2.33 | |
| 4 | 3007-687 | BOLT,MAG STATOR 6X30 | 1 | $4.68 | |
| 5 | 3008-109 | HOLDER, MAGNETO LEAD WIRE | 1 | $22.01 | |
| 6 | 3008-331 | CLAMP | 1 | $5.79 | |
| 8 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 9 | 3008-571 | FLYWHEEL | 1 | $845.29 | |
| 10 | 3008-448 | BOLT, MAGNETO ROTOR-M10X30 | 1 | $5.95 | |
| 11 | 3008-017 | WASHER, 10.5X30X3.2 | 1 | $5.95 | |
| 12 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 13 | 3008-110 | HOLDER, GROMMET | 1 | $29.29 |
