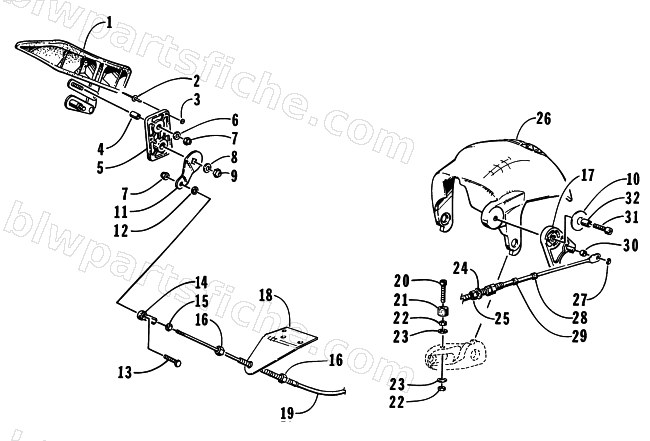

1998 Arctic Cat TS-L 770 — REVERSE DEFLECTOR AND LEVER ASSEMBLY
1998 TS-L 770
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1673-468 | HANDLE,REVERSE-ASSY (MTLC GREEN) | 1 | $93.79 | |
| 2 | 0624-288 | RIVET,SS/SS612LF | 1 | $2.29 | |
| 3 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 4 | 0624-478 | SPACER,( X X ) | 1 | $10.29 | |
| 5 | 1673-636 | PLATE,MOUNTING-MACH | 1 | $5.95 | |
| 6 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 7 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 8 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 9 | 0624-090 | NUT,LOCK-HH M8-1.25 (SS) | 1 | $1.89 | |
| 11 | 1673-389 | LINK,INNER-REVERSE | 1 | $26.95 | |
| 14 | 0673-932 | ROD END,STEERING (1/4-28) | 1 | $85.95 | |
| 15 | 0624-279 | NUT,HEX-1/4-28 (SS) | 1 | $0.67 | |
| 16 | 0624-470 | NUT,HEX-9/16-18 SS | 1 | $2.59 | |
| 18 | 1673-543 | MOUNT,CABLE-REVERSE | 1 | $44.59 | |
| 19 | 1673-416 | CABLE,PUSH PULL (REV) | 1 | $244.95 | |
| 22 | 0624-107 | NUT,HEX-10-32 (SS) | 1 | $0.39 | |
| 24 | 1673-193 | GASKET,CABLE-FOAM | 1 | $3.49 | |
| 25 | 0623-669 | NUT,STEERING CABLE-NYLON | 1 | $2.95 | |
| 26 | 0775-108 | DEFLECTOR,REVERSE-WELDMENT | 1 | $212.95 | |
| 29 | 0612-364 | COVER,THREAD CAP-STEERING CABLE | 1 | $2.69 | |
| 30 | 0624-450 | SPACER,..255X.375X.205-SS | 1 | $2.29 | |
| 31 | 0624-157 | SCREW,CAP-HSH 8MM 1.25 X 30MM SS | 1 | $2.39 |
