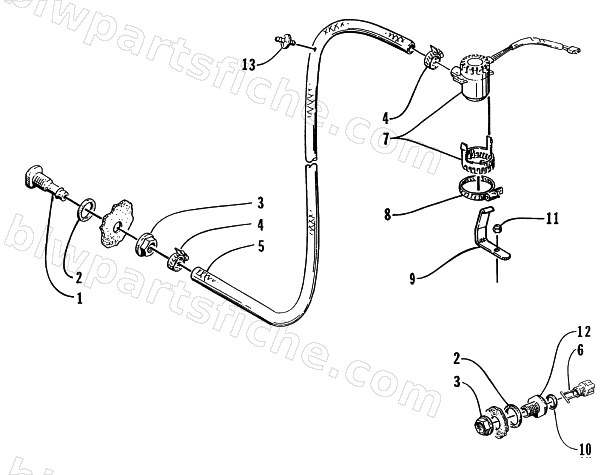

1998 Arctic Cat TS-R 1000 — BILGE PUMP ASSEMBLY
1998 TS-R 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 4 | 0624-018 | CLAMP,HOSE-6712-5 (1/2-1 1/4) #12 | 1 | $3.29 | |
| 5 | 0710-201 | HOSE,BILGE-W/ANTISIPHON (48) | 1 | $24.77 | |
| 8 | 0624-038 | CLAMP,HOSE-6728-5 (1 5/16-2 1/4) #28 | 1 | $4.49 | |
| 10 | 0673-459 | O-RING,3/4ID X 1/16 (-018) | 1 | $1.23 | |
| 11 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 |
