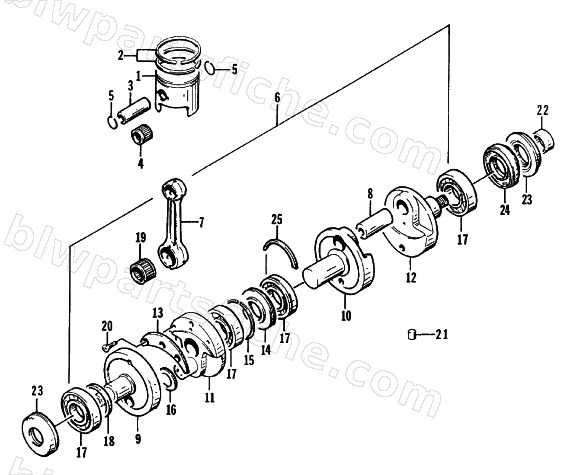

CRANKSHAFT ASSEMBLY
1998 TS-R 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-416 | PISTON, + .020 - 770 CC | 1 | $152.95 | |
| 2 | 3008-413 | RING SET - 770 CC | 1 | $86.95 | |
| 2 | 3008-415 | RING SET + .010 - 770 CC | 1 | $71.95 | |
| 2 | 3008-417 | RING SET, +.020 - 770CC | 1 | $84.95 | |
| 3 | 3008-482 | PIN, PISTON | 1 | $38.95 | |
| 4 | 3003-433 | BEARING,PISTON PIN,ROLLER,M20X26X24 | 1 | $42.95 | |
| 5 | 3003-439 | CIRCLIP,PISTON PIN,M20 | 1 | $3.16 | |
| 6 | 3008-428 | CRANKSHAFT ASSY | 1 | $3,841.95 | |
| 7 | 3008-427 | ROD, CONNECTING | 1 | $254.95 | |
| 8 | 3008-429 | PIN, CRANK | 1 | $64.95 | |
| 9 | 3008-430 | CRANKSHAFT, RH | 1 | $545.95 | |
| 10 | 3008-431 | CRANKSHAFT, M | 1 | $390.29 | |
| 11 | 3008-432 | WHEEL, CRANKSHAFT | 1 | $441.79 | |
| 12 | 3008-433 | CRANKSHAFT, LH | 1 | $428.59 | |
| 13 | 3008-069 | BALANCER, CRANKSHAFT | 1 | $43.95 | |
| 14 | 3003-606 | RACE,MIDDLE SEAL-LH | 1 | $66.95 | |
| 15 | 3003-453 | RING, MIDDLE CRANK SEAL | 1 | $32.95 | |
| 16 | 3008-019 | WASHER, M26X40X1.5 | 1 | $12.79 | |
| 17 | 3008-421 | BEARING,BALL,M35 | 1 | $125.95 | |
| 18 | 3008-495 | WASHER,40MM | 1 | $4.68 | |
| 19 | 3008-423 | BEARING,M26 | 1 | $129.95 | |
| 20 | 3007-440 | SCREW | 1 | $2.06 | |
| 21 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 22 | 3008-072 | SPACER, CRANKSHAFT | 1 | $252.95 | |
| 23 | 3003-367 | SEAL,CRANKSHAFT-RH,M35 | 1 | $69.95 | |
| 24 | 3002-355 | SEAL,CRANKSHAFT-LH M35 | 1 | $49.95 | |
| 25 | 3003-359 | C-RING,CRANKSHAFT,M75 | 1 | $20.63 |
