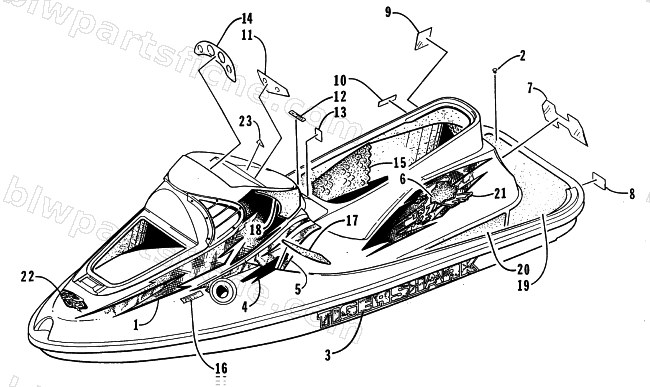

1998 Arctic Cat TS-R 770 — DECAL AND FOOTPAD ASSEMBLY
1998 TS-R 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0614-368 | DECAL,DECK-UPPER STRBRD | 1 | $134.59 | |
| 1 | 0614-369 | DECAL,DECK-UPPER PORT | 1 | $134.59 | |
| 2 | 0623-725 | CLIP,RETAINING-BLACK | 1 | $0.75 | |
| 3 | 0614-364 | DECAL,HULL-STRBRB "TIGERSHARK" | 1 | $102.59 | |
| 3 | 0614-365 | DECAL,HULL-PORT "TIGERSHARK" | 1 | $94.29 | |
| 4 | 0614-370 | DECAL,DECK-LOWER STRBRD | 1 | $30.95 | |
| 4 | 0614-371 | DECAL,DECK-LOWER PORT | 1 | $30.95 | |
| 5 | 0614-438 | DECAL,DECK LWR STRBRD-AFT | 1 | $33.29 | |
| 5 | 0614-439 | DECAL,DECK LWR PORT-AFT | 1 | $41.59 | |
| 6 | 0617-259 | FOAM,SOUND-PORT | 1 | $36.59 | |
| 7 | 0614-350 | DECAL,REGULATION-WHITE | 1 | $49.29 | |
| 8 | 0614-154 | DECAL,CAUTION-UPRIGHTING | 1 | $12.29 | |
| 9 | 0614-066 | DECAL,USCG EXEMPTION | 1 | $4.59 | |
| 10 | 0614-059 | DECAL, COMMON SENSE | 1 | $11.29 | |
| 11 | 0614-308 | DECAL,CONSOLE | 1 | $14.95 | |
| 12 | 0614-300 | DECAL, OIL - USAGE | 1 | $8.59 | |
| 13 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 14 | 0614-309 | DECAL,INSTRUMENT PANEL | 1 | $13.95 | |
| 16 | 0614-405 | DECAL,FUEL-91 MIN OCTANE | 1 | $10.59 | |
| 17 | 0773-847 | PAD,FOOT-FULL SET | 1 | $252.79 | |
| 17 | 1673-246 | PAD,FOOT-FWD RH | 1 | $61.95 | |
| 17 | 1673-247 | PAD,FOOT-FWD LH | 1 | $50.79 | |
| 18 | 1673-292 | PAD,KNEE-STARBOARD | 1 | $9.38 | |
| 20 | 1673-244 | PAD,FOOT-RH | 1 | $113.95 | |
| 20 | 1673-245 | PAD,FOOT-LH | 1 | $113.95 | |
| 21 | 0614-366 | DECAL,SIDE-STRBRD | 1 | $67.79 | |
| 21 | 0614-367 | DECAL,SIDE-PORT | 1 | $67.79 | |
| 22 | 0614-363 | DECAL,CREST | 1 | $26.59 | |
| 23 | 3611-003 | DECAL,DOME-"MADE IN U.S.A." | 1 | $7.95 |
