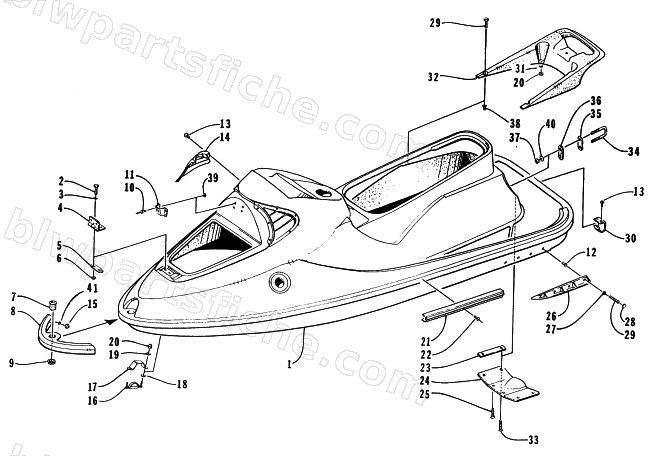

1998 Arctic Cat TS-R 770 — HULL AND RELATED PARTS ASSEMBLY
1998 TS-R 770
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0773-924 | HULL/DECK ASSY-SP 98 TS770 R | 1 | $4,390.29 | |
| 2 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 3 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 4 | 1673-032 | HINGE | 1 | $180.95 | |
| 5 | 1673-031 | PLATE,BACKING-HINGE | 1 | $4.89 | |
| 6 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 8 | 1673-444 | NOSECONE,RED | 1 | $45.95 | |
| 9 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 10 | 0624-072 | RIVET,SS/SS68D | 1 | $1.29 | |
| 11 | 1673-034 | STRIKE, HATCH LATCH | 1 | $60.29 | |
| 12 | 0623-737 | INSERT,BRASS-AKB2-420-390 (.25 X 20) | 1 | $5.59 | |
| 13 | 0623-726 | CLIP,RETAINING-RED | 1 | $0.44 | |
| 14 | 1673-267 | GRILLE,PORT-RED | 1 | $20.63 | |
| 15 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 16 | 0773-516 | BOWEYE-WELDMENT | 1 | $66.95 | |
| 17 | 0673-897 | STRAP,REINFORCEMENT | 1 | $15.11 | |
| 18 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 19 | 0624-247 | WASHER,FLAT (SS) .250X.562 | 1 | $0.75 | |
| 20 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 21 | 1673-271 | RUB RAIL,PORT-RED(USE 1773-046 BLACK) | 1 | $116.95 | |
| 22 | 0624-030 | RIVET,SS/SS610LF | 1 | $2.19 | |
| 23 | 1673-200 | PLATE,NUT | 1 | $12.95 | |
| 24 | 0775-073 | PLATE, RIDE-WELD'T | 1 | $308.95 | |
| 25 | 0624-184 | SCREW,MACH-TSFH 6MM-1.0 X 25MM (SS) | 1 | $2.19 | |
| 26 | 1673-582 | SPONSON,STRBRD-BLACK | 1 | $81.95 | |
| 26 | 1673-583 | SPONSON,PORT-BLACK | 1 | $81.95 | |
| 27 | 0124-065 | WASHER,SNAP CAP | 1 | $0.40 | |
| 28 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 29 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 30 | 1673-285 | COVER,RUB RAIL-RED | 1 | $7.29 | |
| 31 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 32 | 1673-025 | HANDLE,GRAB-BLACK | 1 | $113.95 | |
| 33 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 34 | 0624-429 | BOLT,U ASSY.3/8-16 | 1 | $18.79 | |
| 35 | 0673-656 | PLATE,BACKUP-EYEHOOK | 1 | $5.29 | |
| 37 | 0624-258 | NUT,LOCK 3/8-16 SS | 1 | $1.39 | |
| 39 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 40 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 |
