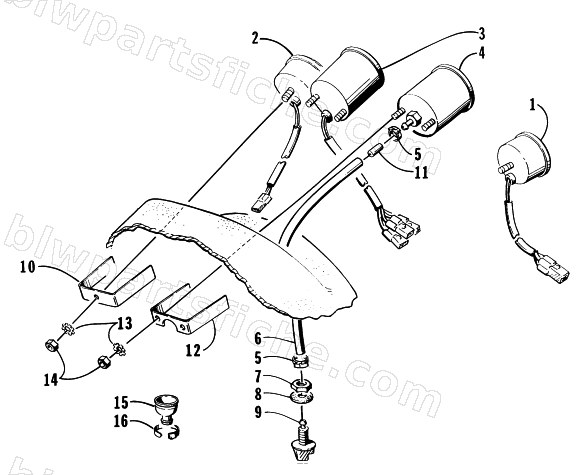

1998 Arctic Cat TS-R 770 — INSTRUMENT ASSEMBLY
1998 TS-R 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0620-214 | GAUGE,FUEL LEVEL-W/OIL&OVERHEAT LED | 1 | $241.59 | |
| 3 | 0620-191 | TACHOMETER,3INCH-4 POLE | 1 | $422.95 | |
| 4 | 0620-189 | SPEEDOMETER,3 INCH | 1 | $247.95 | |
| 6 | 0673-809 | TUBING,VINYL-20FT | 1 | $39.95 | |
| 10 | 0620-173 | BACKCLAMP,FUEL GAUGE | 1 | $4.89 | |
| 12 | 0620-199 | BRACKET,GAUGE-3" | 1 | $5.92 | |
| 12 | 0620-201 | BACKCLAMP,TACHOMETER | 1 | $17.87 | |
| 13 | 0623-702 | WASHER,STAR-#8 BRASS | 1 | $0.92 | |
| 14 | 0623-701 | NUT,HEX-8-32 | 1 | $0.18 | |
| 15 | 1673-399 | SEAL,BULKHEAD | 1 | $3.99 | |
| 16 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
