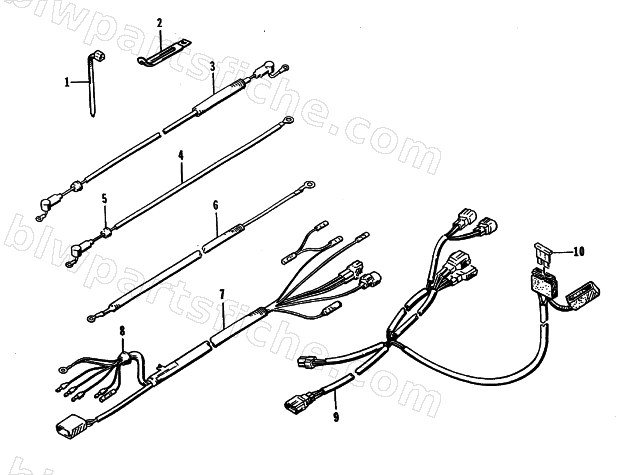

1998 Arctic Cat TS-R 770 — WIRING HARNESS
1998 TS-R 770
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-044 | CLAMP, L:125,M14 | 1 | $2.69 | |
| 2 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 3 | 3008-466 | CABLE, STARTER RELAY | 1 | $113.95 | |
| 4 | 3008-345 | CABLE,BATTERY | 1 | $64.95 | |
| 5 | 3008-334 | GROMMET | 1 | $22.01 | |
| 6 | 3008-467 | CABLE, GROUND | 1 | $82.95 | |
| 7 | 3008-547 | HARNESS, WIRING | 1 | $276.95 | |
| 8 | 3008-362 | GROMMET | 1 | $12.95 | |
| 9 | 0686-430 | HARNESS, BILGE&FUEL&TRIM&TACH | 1 | $205.95 | |
| 10 | 0630-056 | FUSE,3 AMP-ATO | 1 | $5.95 |
