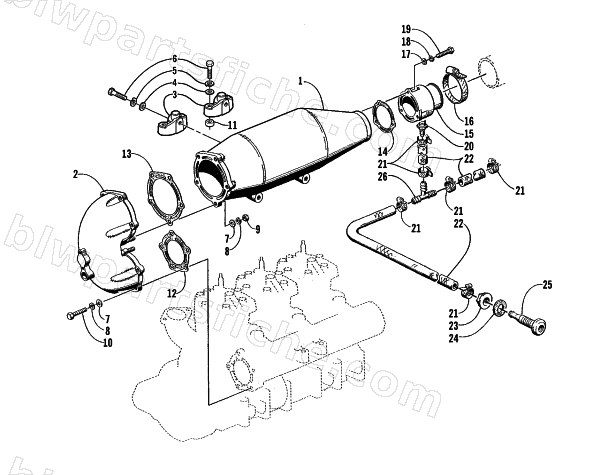

1999 Arctic Cat TS 1100 LI — EXPANSION CHAMBER ASSEMBLY
1999 TS 1100 LI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0612-929 | CHAMBER,EXPANSION-MACH | 1 | $1,235.95 | |
| 2 | 0612-959 | PIPE,HEAD-MACH | 1 | $587.95 | |
| 4 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 5 | 0624-012 | WASHER,LOCK-10MM SL (SS) | 1 | $0.92 | |
| 6 | 0624-238 | SCREW,CAP-HH M10 X 1.25P X 45 (SS) | 1 | $25.29 | |
| 7 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 8 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 9 | 0624-149 | NUT, HEX 8MM-1.25 SS | 1 | $3.09 | |
| 10 | 0624-313 | SCREW,CAP-HSH M8-1.25X35 (SS) | 1 | $3.89 | |
| 11 | 0624-378 | SPACER,M10X.1825 | 1 | $6.95 | |
| 14 | 1612-238 | GASKET,TAILPIPE | 1 | $50.95 | |
| 15 | 0612-626 | PIPE,TAIL-MACH | 1 | $463.95 | |
| 16 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 17 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 20 | 1673-164 | FITTING,BRASS-1/4NPTX1/2 125HBL-8-4 | 1 | $9.79 | |
| 21 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 22 | 0610-268 | HOSE,WATER-1/2 HI TEMP 25' 0619-343 | 1 | $97.29 | |
| 23 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 25 | 0673-374 | OUTLET,WATER | 1 | $15.11 | |
| 26 | 0673-136 | FITTING,TEE-1/2X1/2X1/2 | 1 | $3.39 |
