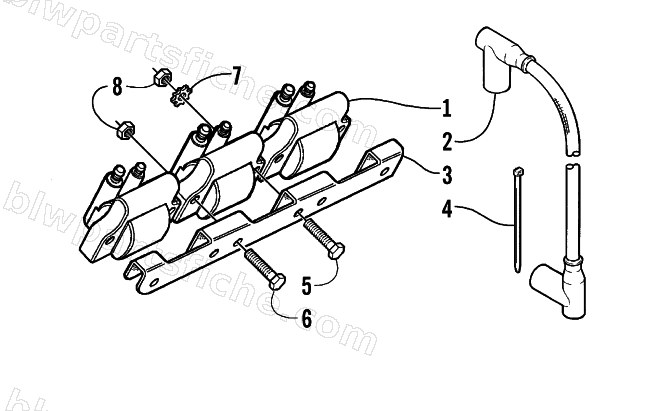

1999 Arctic Cat TS 1100 LI — IGNITION COIL
1999 TS 1100 LI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3670-018 | COIL,IGNITION | 1 | $29.95 | |
| 2 | 0630-132 | WIRE,IGNITION SECONDARY (22) | 1 | $16.95 | |
| 3 | 1673-689 | BRACKET,MOUNTING-COIL | 1 | $61.95 | |
| 4 | 3003-787 | CABLE TIE | 1 | $4.95 | |
| 5 | 0624-052 | SCREW,CAP-HH-6MM-1.0TX35MM(SS) | 1 | $2.09 | |
| 7 | 0624-492 | WASHER,LOCK-1/4 STAR(EXTERNAL)1614 | 1 | $0.33 | |
| 8 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 |
