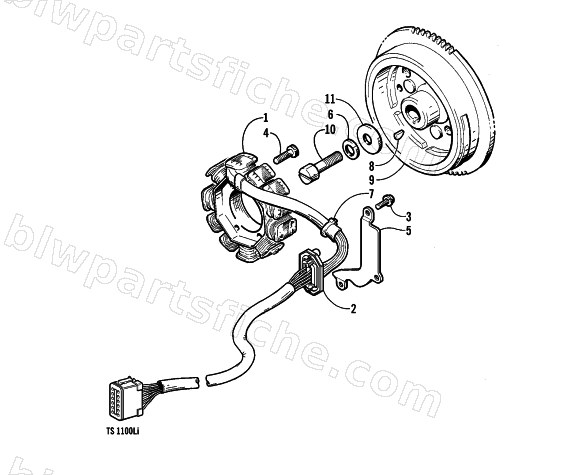

1999 Arctic Cat TS 1100 LI — MAGNETO
1999 TS 1100 LI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3670-021 | STATOR,ASSY | 1 | $904.95 | |
| 2 | 3008-110 | HOLDER, GROMMET | 1 | $29.29 | |
| 4 | 0624-490 | SCREW,CAP-HS PLAIN HEAD M6-1.0X30 SS | 1 | $1.09 | |
| 5 | 0609-448 | BRACKET,STATOR | 1 | $24.95 | |
| 6 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 7 | 3003-787 | CABLE TIE | 1 | $4.95 | |
| 8 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 9 | 3670-022 | FLYWHEEL,ASSY | 1 | $876.95 | |
| 10 | 3008-448 | BOLT, MAGNETO ROTOR-M10X30 | 1 | $5.95 | |
| 11 | 3008-017 | WASHER, 10.5X30X3.2 | 1 | $5.95 |
