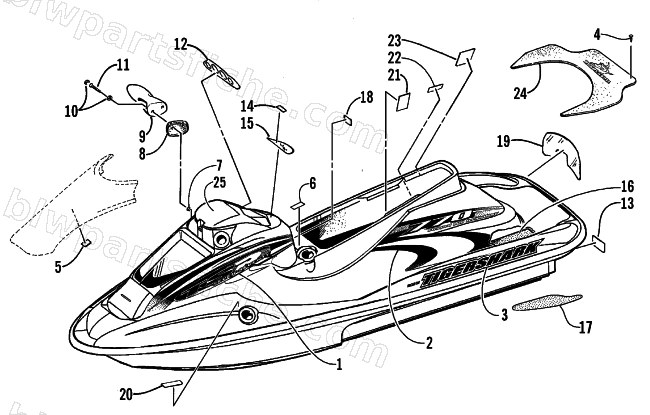

1999 Arctic Cat TS 1100 R — DECAL AND FOOTPAD ASSEMBLY
1999 TS 1100 R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0614-536 | DECAL,HATCH-STRBRD | 1 | $43.79 | |
| 1 | 0614-537 | DECAL,HATCH-PORT | 1 | $43.79 | |
| 2 | 0614-538 | DECAL,SIDE-STRBRD | 1 | $134.59 | |
| 2 | 0614-539 | DECAL,SIDE-PORT | 1 | $134.59 | |
| 3 | 0614-534 | DECAL,SIDE-STRBRD"TIGERSHARK" | 1 | $84.59 | |
| 4 | 0623-725 | CLIP,RETAINING-BLACK | 1 | $0.75 | |
| 5 | 0614-431 | DECAL,LOADING-STORAGE TRAY | 1 | $4.99 | |
| 6 | 0614-300 | DECAL, OIL - USAGE | 1 | $8.59 | |
| 7 | 0623-737 | INSERT,BRASS-AKB2-420-390 (.25 X 20) | 1 | $5.59 | |
| 8 | 1673-120 | GASKET,MOUNTING-MIRROR RH | 1 | $10.97 | |
| 8 | 1673-127 | GASKET,MOUNTING-MIRROR LH | 1 | $10.97 | |
| 9 | 1673-648 | MIRROR,STRBRD-BLACK | 1 | $145.59 | |
| 9 | 1673-649 | MIRROR,PORT-BLACK | 1 | $143.59 | |
| 10 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 11 | 0624-187 | SCREW,MACH-PHPNH-1/4-20 X 1 1/2 (SS) | 1 | $1.39 | |
| 12 | 0614-540 | DECAL,INSTR PANEL (R) | 1 | $34.59 | |
| 13 | 0614-154 | DECAL,CAUTION-UPRIGHTING | 1 | $12.29 | |
| 14 | 0614-361 | DECAL,LEAN CONDITION-RED | 1 | $7.59 | |
| 15 | 0614-554 | DECAL,CONSOLE (R NO RES) | 1 | $39.59 | |
| 16 | 0617-262 | FOAM,FOOTWELL | 1 | $25.79 | |
| 17 | 1673-658 | PAD,FOOT-STRBRD | 1 | $53.95 | |
| 17 | 1673-659 | PAD,FOOT-PORT | 1 | $51.95 | |
| 18 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 19 | 0614-351 | DECAL,REGULATION-RED | 1 | $39.95 | |
| 20 | 0614-323 | DECAL,CAUTION-FUEL | 1 | $21.95 | |
| 21 | 0614-404 | DECAL,WINTER STORAGE-1000 | 1 | $11.79 | |
| 22 | 0614-325 | DECAL,COMMON SENSE-RED | 1 | $4.49 | |
| 23 | 0614-326 | DECAL,USCG EXEMPTION-RED | 1 | $6.79 | |
| 25 | 0614-555 | DECAL,ANTI GLARE | 1 | $22.09 |
