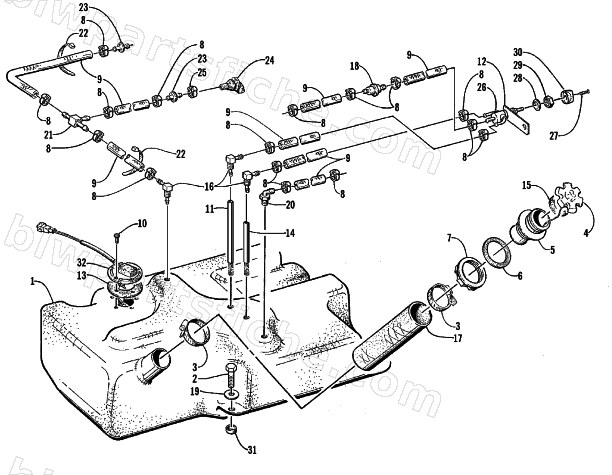

1999 Arctic Cat TS 1100 R — FUEL TANK ASSEMBLY
1999 TS 1100 R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-331 | TANK,FUEL-MFG ASSY (98 L TRIPLES) | 1 | $288.95 | |
| 3 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 4 | 0670-582 | R/B 0670-398 | 1 | $11.95 | |
| 5 | 0637-171 | KIT,FILLER NECK REPLACEMENT-DT | 1 | $23.39 | |
| 6 | 0670-688 | GASKET,FILL NECK | 1 | $2.69 | |
| 8 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 9 | 0710-425 | HOSE,FUEL-25' (ISO8469) | 1 | $95.59 | |
| 10 | 0624-312 | SCREW,MACH-HWH 10-32X.475 (SS) | 1 | $4.95 | |
| 11 | 1673-055 | TUBE,DROP-MAIN | 1 | $18.29 | |
| 13 | 0670-474 | GASKET,FUEL SENSOR-PWC | 1 | $19.95 | |
| 15 | 0470-414 | GASKET, FILLER CAP | 1 | $26.95 | |
| 16 | 0670-762 | FITTING,ELBOW-FUEL | 1 | $23.95 | |
| 17 | 0710-103 | HOSE,FILL-2 ID X 9 (GAS/OIL) | 1 | $0.00 | |
| 18 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 19 | 0624-125 | WASHER FLAT,FENDER 8MM (SS) | 1 | $1.69 | |
| 21 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 32 | 0620-180 | SENSOR,FUEL LEVEL | 1 | $160.95 |
