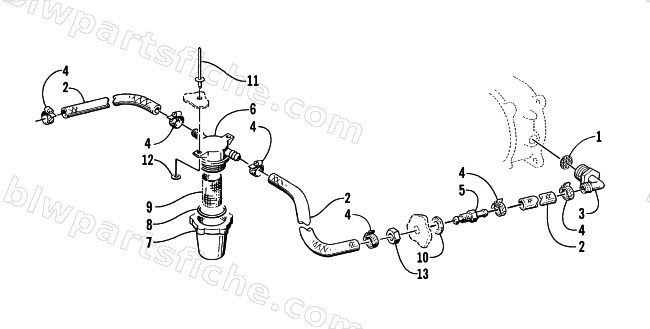

1999 Arctic Cat TS 1100 R — WATER FILTER ASSEMBLY
1999 TS 1100 R
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0675-042 | SCREEN | 1 | $6.75 | |
| 2 | 0710-190 | HOSE,WATER-.625X25' | 1 | $61.79 | |
| 3 | 1673-158 | FITTING,ELBOW-.625 BARB X .75 MPT EL345 | 1 | $2.99 | |
| 4 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 5 | 1673-448 | FITTING,BULKHEAD-5/8" | 1 | $4.79 | |
| 8 | 0673-670 | O-RING | 1 | $6.29 | |
| 10 | 0676-001 | GASKET,FOAM (7/8 I D) | 1 | $0.79 | |
| 11 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 12 | 0624-025 | WASHER,FLAT-4MM SS | 1 | $0.44 | |
| 13 | 0623-709 | NUT,JAM-7/8-14 NYLON (0487514HJN) | 1 | $1.69 |
