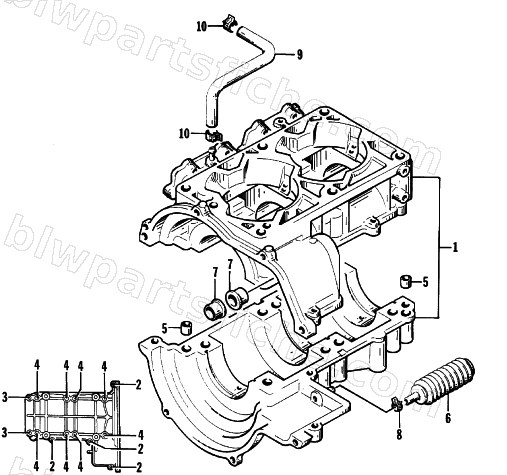

1999 Arctic Cat TS 640 — CRANKCASE

1999 TS 640

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3008-382	CRANKCASE-ASSY	1	$2,049.95
2	3008-210	BOLT, 6X35	1	$4.19
4	3008-212	BOLT, 10X70	1	$13.73
5	3008-199	PIN, KNOCK(ALIGNMENT)	1	$3.16
7	3008-105	BUSHING, PINION SHAFT	1	$41.95
9	3008-200	HOSE, VACUUM,M5.3X10.5X600	1	$26.95
10	3008-039	CLIP, ID:10.5	1	$3.49
