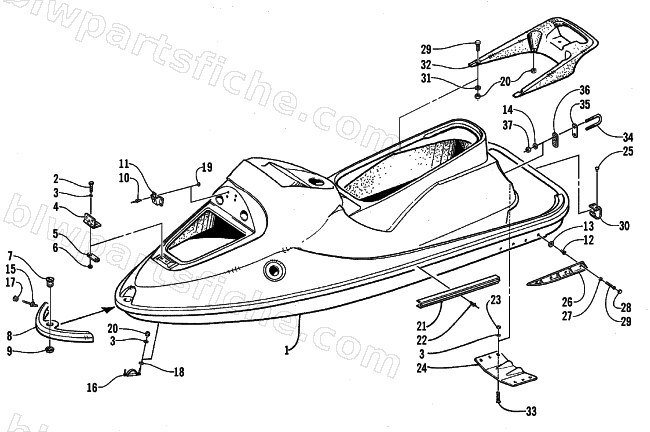

1999 Arctic Cat TS 640 — HULL AND RELATED PARTS ASSEMBLY
1999 TS 640
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0773-983 | HULL/DECK ASSY-SP 99 TS640 | 1 | $4,390.29 | |
| 2 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 3 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 4 | 1673-032 | HINGE | 1 | $180.95 | |
| 5 | 1673-031 | PLATE,BACKING-HINGE | 1 | $4.89 | |
| 6 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 8 | 0773-974 | NOSECONE,BLACK-RIVET ON | 1 | $115.59 | |
| 9 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 10 | 0624-072 | RIVET,SS/SS68D | 1 | $1.29 | |
| 11 | 1673-034 | STRIKE, HATCH LATCH | 1 | $60.29 | |
| 12 | 0623-737 | INSERT,BRASS-AKB2-420-390 (.25 X 20) | 1 | $5.59 | |
| 13 | 0624-293 | WASHER,BACKUP-AVK/.395X.65 | 1 | $0.36 | |
| 14 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 | |
| 15 | 0623-636 | RIVET,AD610ABSLF-BLK | 1 | $1.29 | |
| 16 | 0773-516 | BOWEYE-WELDMENT | 1 | $66.95 | |
| 17 | 1673-687 | PLUG,.75-BLACK (HEYCO SP-750 P/N1693) | 1 | $1.79 | |
| 18 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 19 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 20 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 21 | 0673-916 | TRIM,RH-BLK | 1 | $102.29 | |
| 21 | 0673-954 | TRIM,LH-BLK | 1 | $144.95 | |
| 22 | 0624-030 | RIVET,SS/SS610LF | 1 | $2.19 | |
| 23 | 0624-258 | NUT,LOCK 3/8-16 SS | 1 | $1.39 | |
| 24 | 0673-814 | PLATE,RIDE | 1 | $200.95 | |
| 25 | 0623-725 | CLIP,RETAINING-BLACK | 1 | $0.75 | |
| 26 | 1673-582 | SPONSON,STRBRD-BLACK | 1 | $81.95 | |
| 26 | 1673-583 | SPONSON,PORT-BLACK | 1 | $81.95 | |
| 27 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 29 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 30 | 0673-975 | COVER,RUB RAIL | 1 | $46.95 | |
| 31 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 32 | 1673-025 | HANDLE,GRAB-BLACK | 1 | $113.95 | |
| 33 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 35 | 0673-656 | PLATE,BACKUP-EYEHOOK | 1 | $5.29 |
