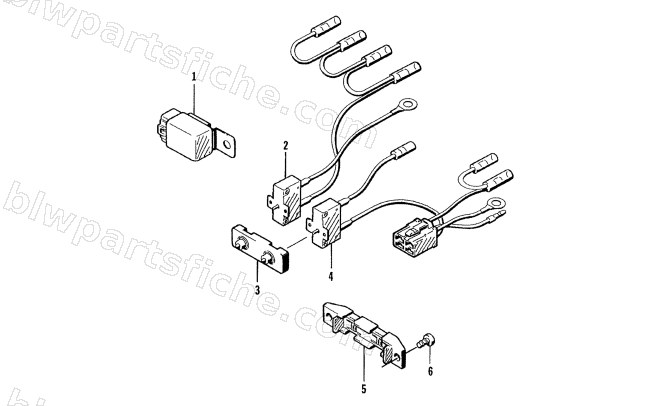

1999 Arctic Cat TS 640 — SENSOR ASSEMBLY
1999 TS 640
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-297 | RELAY | 1 | $129.95 | |
| 2 | 3008-626 | PROTECTOR, CIRCUIT CHARGE | 1 | $81.95 | |
| 3 | 3008-351 | CAP,PROTECTOR | 1 | $19.29 | |
| 4 | 3008-350 | PROTECTOR, CIRCUIT LOAD | 1 | $69.29 | |
| 5 | 3008-294 | HOLDER,PROTECTOR | 1 | $11.29 | |
| 6 | 3008-313 | SCREW,6X12 | 1 | $3.09 |
