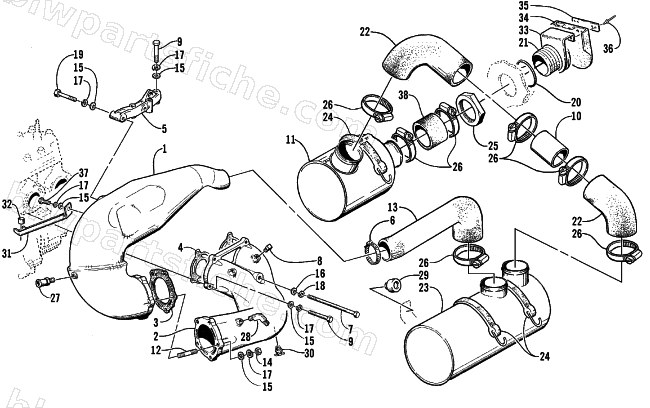

1999 Arctic Cat TS 770 L — EXHAUST ASSEMBLY
1999 TS 770 L
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1612-137 | CHAMBER,EXPANSION-(M10) | 1 | $1,380.95 | |
| 2 | 0612-826 | MANIFOLD,EXHAUST | 1 | $682.95 | |
| 3 | 0612-914 | GASKET,EXHAUST-CORELESS | 1 | $34.95 | |
| 4 | 3008-434 | GASKET, EXH MANIFOLD - REF 14241-98E60 | 1 | $49.95 | |
| 5 | 1612-138 | BRACKET,CHAMBER-EXPANSION (M10) | 1 | $66.95 | |
| 6 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 7 | 0624-344 | SCREW,CAP-HH M10-1.25X135MM SS | 1 | $28.29 | |
| 8 | 0676-003 | PLUG,HH 3\8NPT (218P-6) | 1 | $19.25 | |
| 9 | 0624-365 | SCREW,CAP-HWH M8X55 NYLON PATCH SS | 1 | $6.79 | |
| 10 | 0610-371 | HOSE,EXHAUST- OUT | 1 | $15.95 | |
| 11 | 0712-369 | MUFFLER- WELDT | 1 | $473.95 | |
| 12 | 0624-383 | STUD,M8-1.25X53.6 316SS | 1 | $16.49 | |
| 14 | 0624-149 | NUT, HEX 8MM-1.25 SS | 1 | $3.09 | |
| 15 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 16 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 17 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 18 | 0624-012 | WASHER,LOCK-10MM SL (SS) | 1 | $0.92 | |
| 19 | 0624-367 | SCREW,CAP-HWH M10X55 NYLON PATCH (SS) | 1 | $3.39 | |
| 23 | 0712-370 | MUFFLER- WELDT | 1 | $484.95 | |
| 24 | 0773-805 | STRAP-ASSY.8 5/8-90 | 1 | $9.79 | |
| 25 | 0612-576 | NUT,EXHAUST OUTLET | 1 | $17.95 | |
| 26 | 0624-169 | CLAMP,HOSE {3 1/2"} MS35842-14 | 1 | $4.59 | |
| 27 | 0676-002 | FITTING,3\8NPTX3\4HB-BRASS | 1 | $29.95 | |
| 28 | 1673-101 | FITTING,ELBOW-3/8 BARB X 1/8 NPTM | 1 | $17.87 | |
| 29 | 0673-792 | BUMPER,GROMMET | 1 | $0.86 | |
| 30 | 0676-017 | VALVE,DRAIN | 1 | $26.95 | |
| 31 | 0612-737 | BRACE,EXPANSION CHAMBER | 1 | $50.95 | |
| 32 | 0624-420 | SPACER | 1 | $3.99 | |
| 33 | 1673-411 | BRKT,SOUND DIFFUSER | 1 | $66.95 | |
| 34 | 1673-413 | FLAP,SOUND DIFFUSER | 1 | $24.77 | |
| 35 | 1673-412 | PLATE,BACKING-SOUND DIFFUSER | 1 | $6.06 | |
| 36 | 0623-590 | RIVET AD68AH | 1 | $0.92 | |
| 37 | 0624-064 | SCREW,CAP-HWH M8X25MM NYLON PATCH (SS) | 1 | $2.59 | |
| 38 | 0610-392 | HOSE,3X10.25 | 1 | $34.59 |
