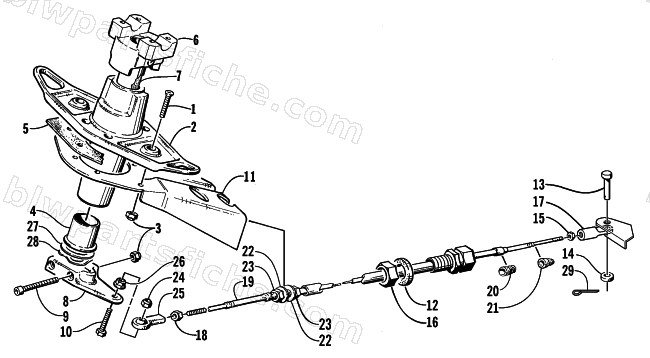

1999 Arctic Cat TS 770 L — STEERING POST ASSEMBLY
1999 TS 770 L
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0624-464 | SCREW,MACH-TSFH 6MM-1.0 X 45 (SS) | 1 | $2.09 | |
| 3 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 4 | 0605-055 | BEARING,FLANGE | 1 | $5.95 | |
| 5 | 0605-391 | GASKET,STEERING HOUSING | 1 | $16.49 | |
| 6 | 0605-382 | POST,STEERING-ASSY | 1 | $288.95 | |
| 7 | 0717-052 | FOAM, NEOPRENE TAPE-10' ROLL | 1 | $8.21 | |
| 9 | 0624-456 | SCREW,CAP-HSH M6X55MM SS | 1 | $4.19 | |
| 11 | 0605-054 | BRACKET,CABLE MOUNT | 1 | $83.79 | |
| 12 | 1673-193 | GASKET,CABLE-FOAM | 1 | $3.49 | |
| 13 | 0624-502 | PIN,CLEVIS-.25X.75 SS | 1 | $2.59 | |
| 14 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 15 | 0624-279 | NUT,HEX-1/4-28 (SS) | 1 | $0.67 | |
| 16 | 0623-669 | NUT,STEERING CABLE-NYLON | 1 | $2.95 | |
| 17 | 0605-422 | ROD END,.25X1/4-28 | 1 | $19.59 | |
| 18 | 0624-107 | NUT,HEX-10-32 (SS) | 1 | $0.39 | |
| 20 | 0612-364 | COVER,THREAD CAP-STEERING CABLE | 1 | $2.69 | |
| 22 | 0624-106 | WASHER,FLAT 7/16 (SS) | 1 | $2.09 | |
| 23 | 0624-105 | NUT,JAM 7/16 (SS) | 1 | $1.19 | |
| 24 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 25 | 0673-931 | ROD END,STEERING (10-32) | 1 | $50.95 | |
| 26 | 0624-233 | NUT, HEX - FLANGE W/SERRATIONS - 1/4-20 | 1 | $1.89 | |
| 27 | 0624-468 | WASHER,FLAT-1.33X1.612X.010 | 1 | $2.69 | |
| 28 | 0624-469 | WASHER,WAVE-1.31X1.62X.20 (28#) | 1 | $11.79 | |
| 29 | 0624-505 | PIN,COTTER-.094X.75 SS | 1 | $0.42 |
