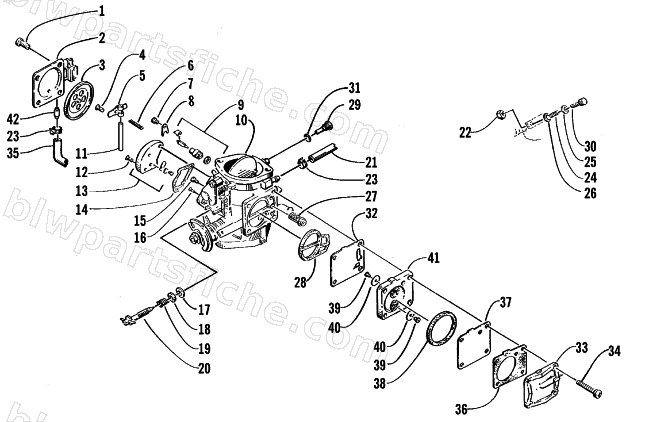

1999 Arctic Cat TS 770 R — CARBURETOR
1999 TS 770 R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1670-043 | CARBURATOR ASSY-BN38I-37-( ) | 1 | $2,023.95 | |
| 1 | 6505-943 | SCREW | 1 | $2.79 | |
| 2 | 6505-946 | DIAPHRAGM COVER ASSY | 1 | $411.95 | |
| 3 | 6505-663 | DIAPHRAM ASS'Y | 1 | $59.95 | |
| 4 | 6505-692 | SCREW | 1 | $1.95 | |
| 5 | 6505-664 | ARM | 1 | $12.59 | |
| 6 | 6505-871 | SPRING ARM,80 GR. | 1 | $10.95 | |
| 7 | 6505-695 | SCREW | 1 | $4.29 | |
| 8 | 6505-682 | PLATE | 1 | $4.79 | |
| 9 | 6505-717 | NEEDLE VALVE, 2.3 | 1 | $59.95 | |
| 11 | 6505-681 | PIN | 1 | $1.59 | |
| 12 | 6505-679 | SCREW | 1 | $0.87 | |
| 13 | 6505-680 | BLOCK, METERING | 1 | $64.95 | |
| 14 | 6505-677 | GASKET | 1 | $32.95 | |
| 15 | 6505-739 | JET, HIGH SPEED, 125 | 1 | $10.97 | |
| 16 | 6506-023 | JET, LOW SPEED - 57.5 01 | 1 | $10.97 | |
| 17 | 6505-668 | O-RING | 1 | $1.79 | |
| 18 | 6505-661 | WASHER | 1 | $1.49 | |
| 19 | 6505-660 | SPRING | 1 | $2.49 | |
| 20 | 6505-852 | ADJUSTER ASS'Y | 1 | $34.95 | |
| 22 | 6505-911 | NUT | 1 | $12.35 | |
| 23 | 6505-941 | CLIP | 1 | $6.95 | |
| 24 | 6505-678 | SPRING | 1 | $2.49 | |
| 25 | 6505-703 | WASHER | 1 | $1.49 | |
| 26 | 6505-872 | O-RING | 1 | $4.59 | |
| 27 | 6505-676 | FILTER | 1 | $14.95 | |
| 28 | 6505-665 | S-GASKET | 1 | $69.95 | |
| 29 | 6505-953 | JET,HIGH SPEED FIXED-85 | 1 | $8.95 | |
| 30 | 6505-912 | ADJUST SCREW | 1 | $46.95 | |
| 31 | 6505-042 | O-RING | 1 | $4.95 | |
| 32 | 6505-656 | DIAPHRAM-DAMPER | 1 | $14.95 | |
| 33 | 6505-652 | COVER, PUMP | 1 | $31.29 | |
| 34 | 6505-704 | SCREW | 1 | $4.29 | |
| 35 | 6505-942 | HOSE | 1 | $7.59 | |
| 36 | 6505-653 | GASKET-PUMP | 1 | $8.95 | |
| 37 | 6505-654 | DIAPHRAGM-PUMP | 1 | $6.95 | |
| 38 | 6505-683 | O-RING | 1 | $49.95 | |
| 41 | 6505-655 | BODY ASS'Y, DIAPHRAM | 1 | $79.95 | |
| 42 | 6505-975 | JET,RECHARGE-0.5 | 1 | $6.59 |
