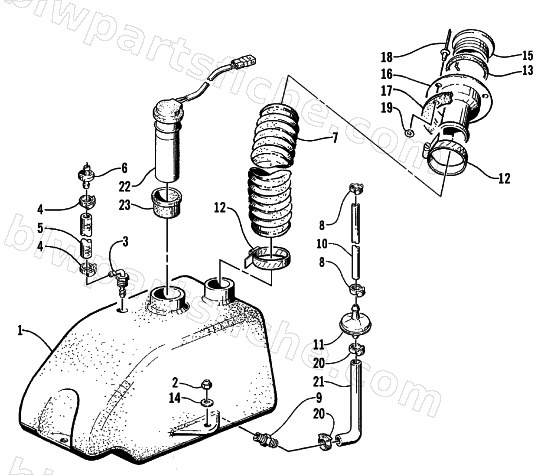

1999 Arctic Cat TS 770 R — OIL TANK ASSEMBLY
1999 TS 770 R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 4 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 5 | 0710-425 | HOSE,FUEL-25' (ISO8469) | 1 | $95.59 | |
| 7 | 0670-772 | HOSE,FILL-OIL | 1 | $49.95 | |
| 8 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 10 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 12 | 0624-019 | CLAMP,HOSE-MS35842-12 (SS)11/16-2 | 1 | $3.49 | |
| 13 | 0670-878 | SEAL,CAP-OIL FILLER | 1 | $6.89 | |
| 14 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 15 | 0670-877 | CAP ASSY-OIL FILLER (CAP,CHAIN,SEAL) | 1 | $61.95 | |
| 16 | 0670-697 | FILLER,OIL-ASSY | 1 | $49.95 | |
| 17 | 0670-679 | GASKET,FILLER-OIL | 1 | $1.69 | |
| 18 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 19 | 0623-603 | WASHER,BACKUP-ABUP6 | 1 | $0.43 | |
| 20 | 0623-646 | CLAMP,HOSE (SNP08) .513-.586 | 1 | $4.95 | |
| 21 | 0610-263 | HOSE,OIL-3/8"ID X 25' | 1 | $177.95 | |
| 23 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 |
