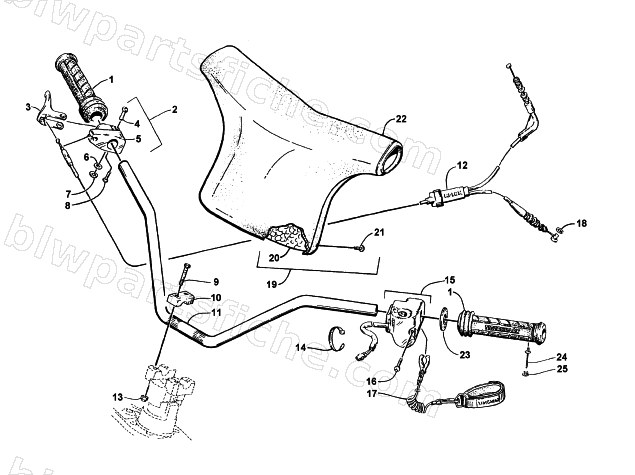

1999 Arctic Cat TS 770 — HANDLEBAR ASSEMBLY
1999 TS 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0773-018 | THROTTLE ASSY. (93) | 1 | $59.95 | |
| 4 | 0605-236 | PIN,THROTTLE LEVER PIVOT | 1 | $4.39 | |
| 5 | 0605-235 | HOUSING,THROTTLE | 1 | $37.95 | |
| 7 | 0624-113 | RING,RETAINING (SS) | 1 | $1.39 | |
| 8 | 0624-132 | SCREW,MACH PHPNH 6MM 1.0TX10MM | 1 | $0.75 | |
| 9 | 0624-278 | SCREW,CAP-HSH M6 X 40 DIN 912 A2-70 (SS) | 1 | $1.99 | |
| 10 | 0673-282 | CAP,STEERING ADJUSTER | 1 | $20.63 | |
| 11 | 1673-038 | HANDLE BAR | 1 | $172.95 | |
| 13 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0609-308 | SWITCH-START/STOP/BILGE(NO TETHER) | 1 | $309.95 | |
| 19 | 0773-898 | COVER,HANDLEBAR-ASSY | 1 | $180.95 | |
| 20 | 1673-499 | PAD HANDLEBAR | 1 | $15.29 | |
| 21 | 0624-506 | SCREW,PHPNH-#10X7/8 HI-LO (#10 HEAD) | 1 | $1.89 | |
| 24 | 0624-216 | RIVET,SS/SS48D | 1 | $1.29 | |
| 25 | 1673-111 | PLUG,MUSHROOM-DOMED-BLK | 1 | $0.46 |
