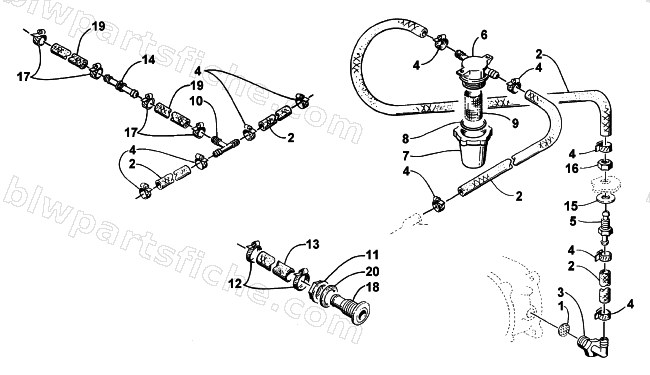

1999 Arctic Cat TS 770 — WATER FILTER ASSEMBLY
1999 TS 770
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0675-042 | SCREEN | 1 | $6.75 | |
| 2 | 0710-190 | HOSE,WATER-.625X25' | 1 | $61.79 | |
| 3 | 1673-158 | FITTING,ELBOW-.625 BARB X .75 MPT EL345 | 1 | $2.99 | |
| 4 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 5 | 1673-448 | FITTING,BULKHEAD-5/8" | 1 | $4.79 | |
| 8 | 0673-670 | O-RING | 1 | $6.29 | |
| 10 | 1673-162 | FITTING,TEE-3/8X5/8X5/8 T3858 | 1 | $4.19 | |
| 11 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 12 | 0624-018 | CLAMP,HOSE-6712-5 (1/2-1 1/4) #12 | 1 | $3.29 | |
| 13 | 0710-191 | HOSE,WATER-HI TEMP.75X25' | 1 | $101.59 | |
| 14 | 1673-170 | JET,RESTRICTOR-WATER (.075) | 1 | $26.95 | |
| 15 | 0676-001 | GASKET,FOAM (7/8 I D) | 1 | $0.79 | |
| 16 | 0623-709 | NUT,JAM-7/8-14 NYLON (0487514HJN) | 1 | $1.69 | |
| 17 | 0623-365 | CLAMP,HOSE (SNP10) | 1 | $1.95 | |
| 19 | 0610-183 | HOSE,3/8 WATERLINE-25' | 1 | $66.29 |
