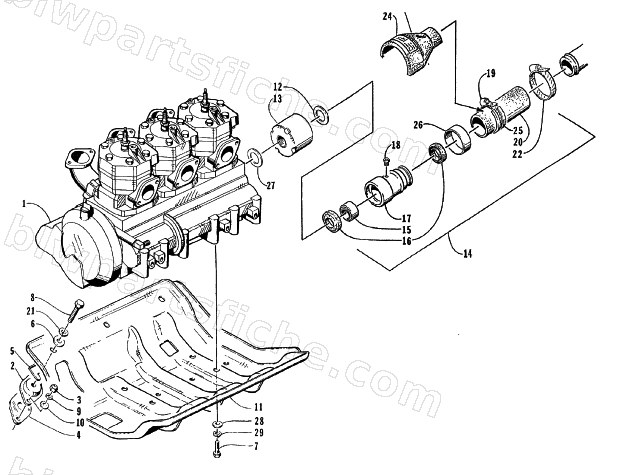

1999 Arctic Cat TS 900 L — ENGINE AND RELATED ASSEMBLY
1999 TS 900 L
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-173 | ENGINE,900 L/C TSK P5 | 1 | $10,055.95 | |
| 2 | 0608-174 | MOUNT,ENGINE | 1 | $107.59 | |
| 3 | 0624-149 | NUT, HEX 8MM-1.25 SS | 1 | $3.09 | |
| 4 | 0673-508 | SHIM,ENG MTG-.125 | 1 | $6.29 | |
| 4 | 0673-509 | SHIM,ENG MNT-.063 | 1 | $3.19 | |
| 5 | 0624-014 | SHIM-.5MM/26 GA. SS | 1 | $2.29 | |
| 5 | 0624-015 | SHIM-1.5MM/16 GA. SS | 1 | $2.69 | |
| 6 | 0624-406 | WASHER,FLAT FENDER-M10X1.38X.183 | 1 | $3.69 | |
| 7 | 0624-416 | SCREW,CAP-HH 1/2-13X1 1/8 | 1 | $4.89 | |
| 8 | 0624-421 | SCREW,CAP-HH M10 1.25X30 DIN933 | 1 | $3.69 | |
| 9 | 0624-465 | WASHER,LOCK-SL 5/16 SS | 1 | $0.36 | |
| 10 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 11 | 0608-271 | PLATE,ENGINE MTG-WELDMENT | 1 | $648.95 | |
| 12 | 0624-447 | WASHER,FLAT-.725X1.025X.100 | 1 | $2.79 | |
| 13 | 0675-174 | COUPLER,DRIVE-THREADED | 1 | $180.29 | |
| 15 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 17 | 0675-162 | HOUSING,BEARING | 1 | $83.79 | |
| 18 | 0624-341 | FITTING, GREASE - 1/4X28 | 1 | $5.59 | |
| 19 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 20 | 0710-214 | HOSE,DRIVESHAFT,4.5 (0619-207 CTL) | 1 | $15.95 | |
| 21 | 0624-012 | WASHER,LOCK-10MM SL (SS) | 1 | $0.92 | |
| 22 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 23 | 0675-223 | GUARD,COUPLER (CLAMP ON) | 1 | $39.59 | |
| 24 | 0614-429 | DECAL,WARNING-COUPLER GUARD | 1 | $12.95 | |
| 25 | 0775-099 | ISOLATOR,CLAMP (0619-476 CTL) | 1 | $2.09 | |
| 26 | 1673-476 | CLAMP,SHRINK-POWERBAND SB54 | 1 | $29.59 | |
| 27 | 0624-448 | WASHER,FLAT-.96X1.77X.125 | 1 | $6.95 | |
| 28 | 0624-282 | WASHER,FLAT-1/2 (.531 X 1.250 X .100) SS | 1 | $2.19 | |
| 29 | 0624-281 | WASHER,LOCK-1/2 (SS) | 1 | $1.19 |
