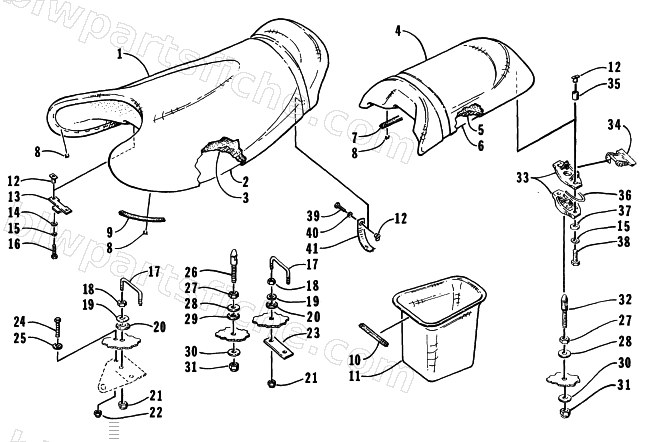

1999 Arctic Cat TS 900 L — SEAT ASSEMBLY
1999 TS 900 L
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0773-892 | SEAT,FWD-MFG ASSY 98 1000 L | 1 | $875.95 | |
| 0 | 0773-893 | SEAT,AFT-MFG ASSY 98 1000 L | 1 | $293.59 | |
| 0 | 1673-535 | STRAP,SEAT-CA RED | 1 | $25.29 | |
| 1 | 0773-894 | COVER,FWD SEAT-CA RED | 1 | $145.59 | |
| 2 | 1673-437 | BASE,SEAT-FWD | 1 | $185.29 | |
| 3 | 0773-872 | FOAM,SEAT-FWD | 1 | $116.79 | |
| 4 | 0773-895 | COVER,AFT SEAT-CA RED | 1 | $145.59 | |
| 5 | 0773-873 | FOAM,SEAT-AFT | 1 | $86.29 | |
| 6 | 1673-438 | BASE,SEAT-AFT | 1 | $186.29 | |
| 8 | 0624-263 | STAPLE,S.S. 3/8"PKG OF 1,250 ARROW | 1 | $133.95 | |
| 9 | 1673-556 | SEAL,SEAT-FWD | 1 | $51.29 | |
| 11 | 1673-443 | BUCKET,STORAGE-REAR | 1 | $42.59 | |
| 14 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 16 | 0624-046 | SCREW,CAP-HH 6MM-1.0X16MM SS | 1 | $1.19 | |
| 18 | 0624-061 | NUT,JAM 8MM 1.25T (SS) | 1 | $1.19 | |
| 19 | 0624-125 | WASHER FLAT,FENDER 8MM (SS) | 1 | $1.69 | |
| 20 | 0624-126 | WASHER FLAT,RUBBER 8MM | 1 | $12.59 | |
| 21 | 0624-090 | NUT,LOCK-HH M8-1.25 (SS) | 1 | $1.89 | |
| 22 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 23 | 0673-752 | PLATE,BACKING-SEAT CATCH | 1 | $2.29 | |
| 24 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 25 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 27 | 0624-047 | NUT,HEX JAM-10MM SS | 1 | $2.59 | |
| 28 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 | |
| 29 | 0623-391 | WASHER,RUBBER 10MM ID | 1 | $5.79 | |
| 30 | 0624-013 | WASHER,FLAT.42X.93X.075 SS | 1 | $1.79 | |
| 32 | 1673-454 | STUD,SEAT LATCH | 1 | $19.59 | |
| 33 | 0773-941 | HOUSING,LATCH-UPPER/LOWER (1673-634/635) | 1 | $9.95 | |
| 34 | 0673-026 | LEVER,RELEASE-SEATLATCH | 1 | $8.59 | |
| 35 | 0623-698 | SPACER,.325X.540X.975 | 1 | $1.19 | |
| 36 | 0673-023 | CLIP,SPRING RETAINING-SS | 1 | $39.95 | |
| 37 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 38 | 0624-302 | SCREW,CAP-HH 6MM X 40 (SS) | 1 | $2.19 | |
| 39 | 0624-272 | SCREW,MACH-TSFH M6 X 16 (SS) | 1 | $2.79 | |
| 40 | 0624-293 | WASHER,BACKUP-AVK/.395X.65 | 1 | $0.36 |
